| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

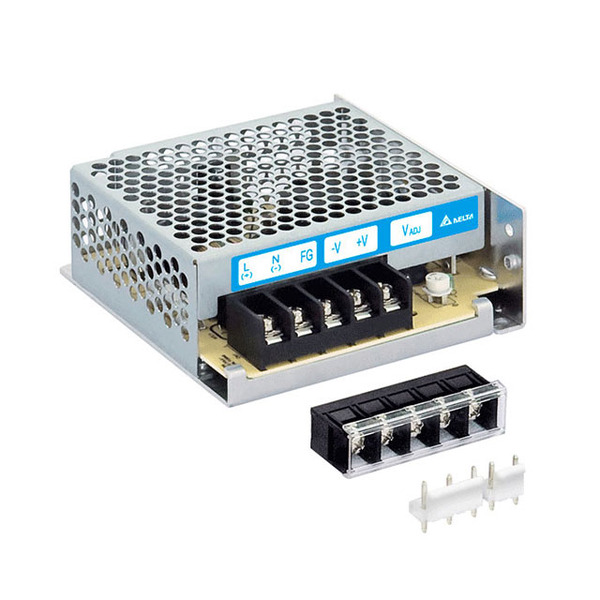

The Delta Electronics PML-12V35W1AA is an AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a maximum current of 2.92A, delivering a total power of 35W. The converter operates with a wide input voltage range of 85 to 264 VAC and boasts an efficiency of 84%.
This unit features a chassis mount type and an enclosed form factor, with dimensions of 98.0mm x 98.0mm x 38.0mm. It offers an isolation voltage of 3kV and operates within a temperature range of -10°C to 70°C with derating. The PML-12V35W1AA is compliant with RoHS3 standards and has an MSL of 1.
Key features include adjustable output and universal input capabilities, making it a versatile power solution. Approvals include CB, CE, CCC, cURus, and TUV, ensuring suitability for various international markets.
The primary output voltage is 12V.
The power rating is 35W.
The input voltage range is 85 to 264 VAC.
It uses chassis mount.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 98.0mm x 98.0mm x 38.0mm.
The product is listed as RoHS3 Compliant.
