Mfr Part #:

PMH-24V200WCBA

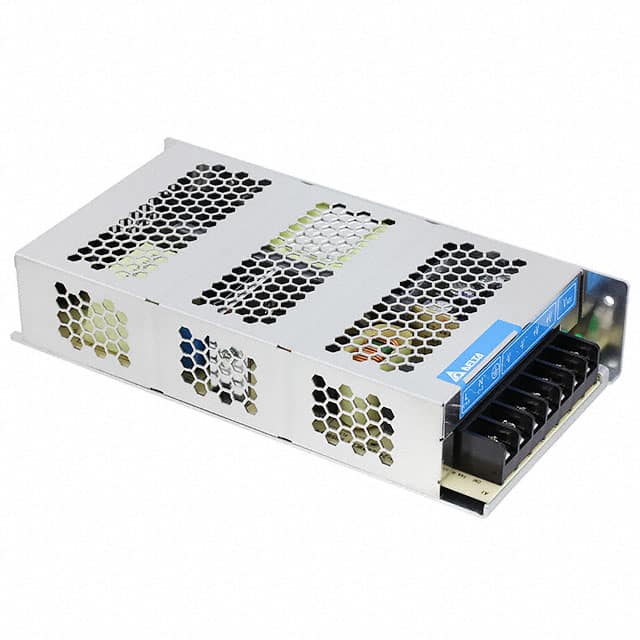

The Delta Electronics PMH-24V200WCBA is an enclosed AC/DC converter with 200W output power and a 24V output voltage. It features adjustable output, PFC, and chassis mounting.

Stock on Request

PMH-24V200WCBA Description

Short technical summary and product information.

This Delta Electronics PMH-24V200WCBA is an enclosed AC/DC converter designed for various applications, including household appliances and ITE (Commercial) equipment. It delivers a robust 200W of power with a 24V output voltage and a current rating of 8.33A.

Key electrical specifications include an efficiency of 91.5% and features such as adjustable output, DC input capability, IP20 rating, load sharing, and power factor correction (PFC). The converter operates within a temperature range of -30°C to 70°C with derating.

Mechanically, this unit is designed for chassis mounting and has dimensions of 190.0mm x 97.0mm x 38.0mm. It holds approvals from CB, CE, and cURus agencies, indicating compliance with various safety and performance standards.

PMH-24V200WCBA Quick Information

Product Type: AC/DC Converter

Canonical Name: Delta Electronics PMH-24V200WCBA Enclosed AC/DC Converter, 200W, 24V Output

Subcategory: Enclosed

PMH-24V200WCBA Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PMH-24V200WCBA Features

Enclosed AC/DC converter with 200W output.
Provides a stable 24V output voltage.
Features adjustable output and PFC.
Designed for chassis mount installation.
Operates from -30°C to 70°C.

PMH-24V200WCBA Applications

Suitable for household appliance power supply designs.
Used in commercial ITE equipment power systems.
Supports universal AC input for global applications.
Enables DC input operation for backup power scenarios.
Provides adjustable output for flexible voltage requirements.

PMH-24V200WCBA FAQs

7 frequently asked questions generated from this part’s specifications.

What is the operating temperature range of the PMH-24V200WCBA?

-30°C to 70°C with derating.

What is the form factor and package type of this converter?

Enclosed chassis mount package measuring 190mm x 97mm x 38mm.

What is the typical efficiency of the PMH-24V200WCBA?

91.5%.

What is the input to output isolation voltage rating?

4.5 kV.

What safety approvals does this converter hold?

CB, CE, and cURus.

How many outputs does the PMH-24V200WCBA have?

1 output.

What special features does this converter include?

Adjustable output, DC input capable, IP20 rating, load sharing, PFC, and universal input.

Category	AC DC Converters
Manufacturer Name	Delta Electronics
AEC Qualified	No
Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, CE, cURus
Automotive Grade	No
Current	8.33 A
Efficiency	91.5%
Features	Adjustable Output, DC Input Capable, IP20, Load Sharing, PFC, Universal Input
Height	38.0mm (1.50")
Industrial Grade	No
Length	190.0mm (7.48")
Medical Grade	No
Military Grade	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-30°C ~ 70°C (With Derating)
Power (Watts)	200W
SVHC Present	Not Present
Type	Enclosed
Voltage	4.5 kV
Width	97.0mm (3.82")
