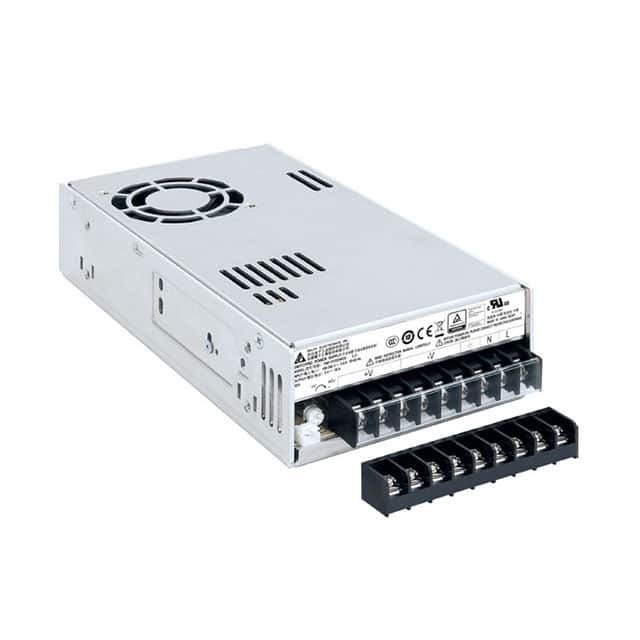

The Delta Electronics PMF-5V320WCGR is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 320W and a current of 55A, with a single output.
Key features include adjustable output, Power Factor Correction (PFC), remote on/off functionality, and a universal input. The converter is designed for chassis mounting and operates within a temperature range of -10°C to 70°C, with derating at higher temperatures. Its dimensions are 215.0mm in length, 115.0mm in width, and 50.0mm in height.
This AC/DC converter has an efficiency of 78.5% and is approved by multiple agencies including CB, CCC, CE, cURus, and TUVgs. It is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
The PMF-5V320WCGR provides a single output of 5V at 55A.
The converter is rated for 320W.
The efficiency is 78.5%.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount packaging.
The dimensions are 215.0mm (length) x 115.0mm (width) x 50.0mm (height).
It is approved by CB, CCC, CE, cURus, and TUVgs.
