| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

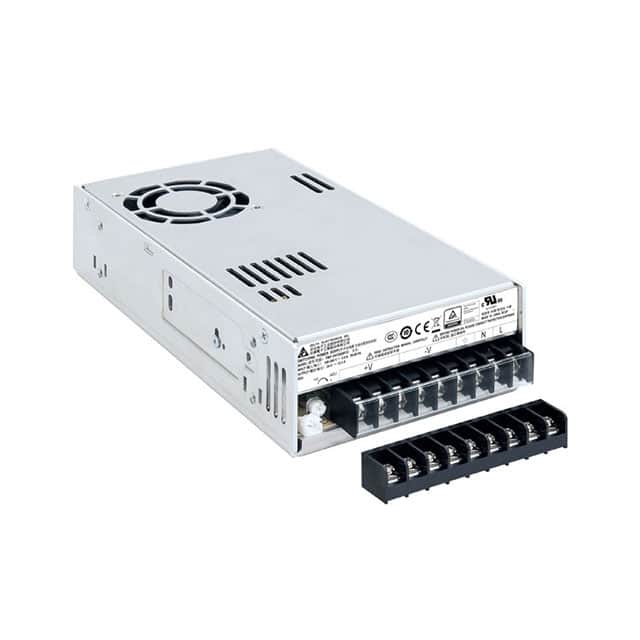

This Delta Electronics PMF-24V320WCGR is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It delivers a power output of 320W with a 24V rating and a current of 13.3A.
The converter features a chassis mount type and offers an adjustable output, along with PFC, remote on/off functionality, and universal input. Its dimensions are 215.0mm in length, 115.0mm in width, and 50.0mm in height.
Operating within a temperature range of -10°C to 70°C (with derating), this unit boasts an efficiency of 87%. It has undergone approvals from agencies including CB, CCC, CE, cURus, and TUVgs, indicating its suitability for various international markets.
Compliance includes RoHS3, MSL 1, and REACH unaffected status. The single output design simplifies integration into various systems.
The PMF-24V320WCGR provides a single output of 24V at 13.3A.
The converter is rated for 320W.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount.
It achieves 87% efficiency.
The dimensions are 215.0mm x 115.0mm x 50.0mm (8.46" x 4.53" x 1.97").
