| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

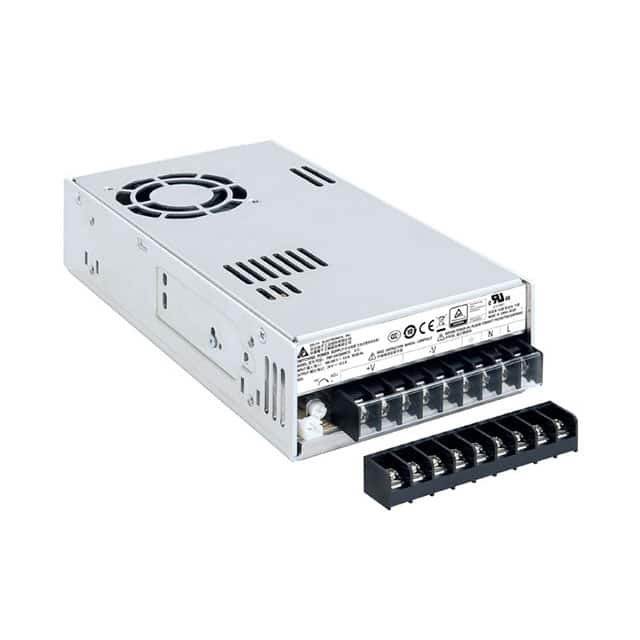

The Delta Electronics PMF-24V320WCAR is a 320 Watt, 24V panel mount AC DC converter designed for industrial automation, control cabinets, and process control applications. It delivers a stable 13.3A output, ensuring reliable power for PLCs, relays, sensors, and other critical devices.
This power supply supports a nominal input voltage of 100–240Vac and a wide input range of 85–264Vac, with a frequency range of 47–63Hz, ensuring consistent operation even in harsh industrial environments. It features adjustable output, Power Factor Correction (PFC), remote On/Off capability, and universal input.
With dimensions of 215.0mm x 115.0mm x 50.0mm, it is designed for chassis mounting. The unit has an efficiency of 87% and an operating temperature range of -10°C to 70°C with derating. It is approved by CB, CCC, CE, cURus, and TUVgs, making it suitable for ITE (Commercial) applications.
The Delta PMF-24V320WCAR has an output power of 320 Watts.
The Delta PMF-24V320WCAR provides a 24V DC output.
The PMF-24V320WCAR has a maximum output current of 13.3 Amperes.
The operating temperature range is -10°C to 70°C, with derating.
This power supply is designed for chassis mounting.
