| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

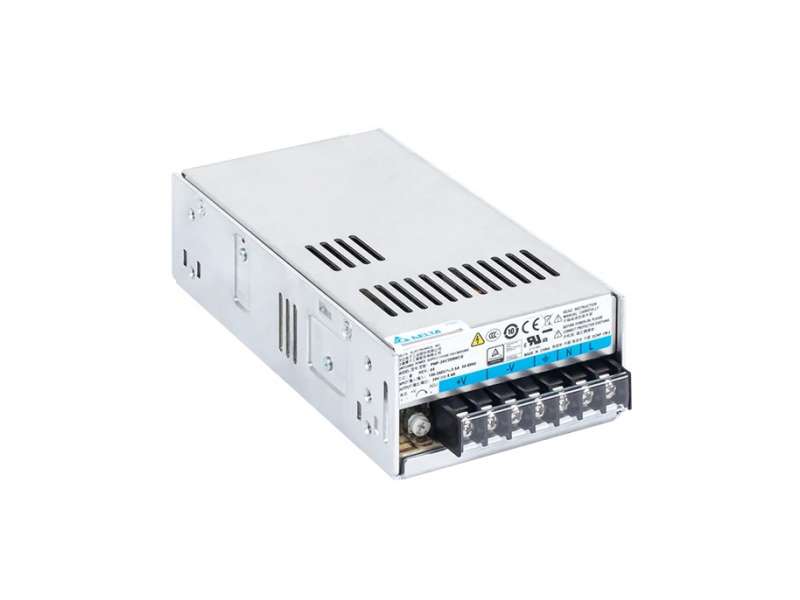

The Delta Electronics PMF-24V240WCAR is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 240W with a current rating of 10A.
Key features include adjustable output, Power Factor Correction (PFC), and remote on/off functionality, providing flexibility in system integration. The converter operates within a temperature range of -10°C to 70°C, with derating applied at higher temperatures. Its efficiency is rated at 87%.
This unit is chassis mountable and has undergone approvals from agencies including CB, CCC, CE, cURus, and TUVgs. The dimensions are 190.0mm in length, 93.0mm in width, and 50.0mm in height. It offers a single output and a voltage rating of 3 kV.
The PMF-24V240WCAR is compliant with RoHS3 standards and has an MSL rating of 1 Unlimited. It is also REACH unaffected.
24V
Chassis Mount
-10°C to 70°C with derating
190.0mm x 93.0mm x 50.0mm
87%
CB, CCC, CE, cURus, TUVgs
10A
