| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

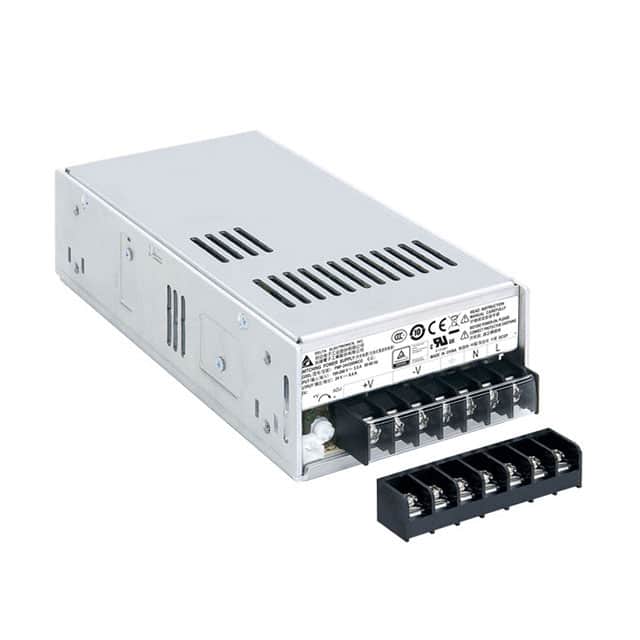

The Delta Electronics PMF-24V200WCAR is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It provides a power output of 200W with an 8.4A current rating and a 24V output voltage.
This converter features adjustable output, Power Factor Correction (PFC), remote on/off functionality, and universal input. It is designed for chassis mounting and operates within a temperature range of -10°C to 70°C with derating. The dimensions are 190.0mm x 93.0mm x 50.0mm.
Key electrical specifications include an efficiency of 87% and an input voltage isolation of 3 kV. The unit is compliant with RoHS3 standards and has a Moisture Sensitivity Level (MSL) of 1.
Approval agencies include CB, CCC, CE, cURus, and TUVgs, indicating broad compliance for various international markets.
The output voltage is 24V DC.
It is chassis mount.
The operating temperature range is -10°C to 70°C with derating.
The typical efficiency is 87%.
It includes adjustable output, power factor correction (PFC), remote on/off, and universal input.
It is approved by CB, CCC, CE, cURus, and TUVgs.
The isolation voltage is 3 kV.
