| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage |

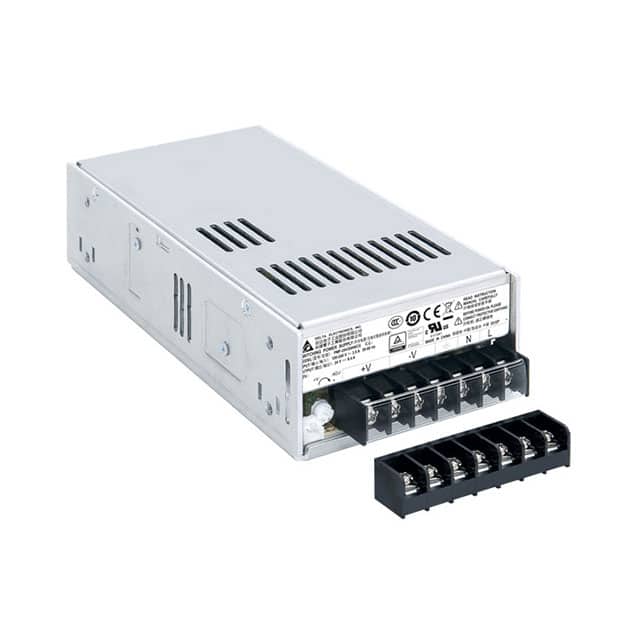

The Delta Electronics PMF-24V200WCAB is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 200W with an adjustable output voltage and a current rating of 8.4A.
Key electrical specifications include an efficiency of 87% and a universal input capability. The converter also features Power Factor Correction (PFC) and an adjustable output. It operates within a temperature range of -10°C to 70°C with derating.
Mechanically, this unit is designed for chassis mounting and has dimensions of 190.0mm x 93.0mm x 50.0mm. It has undergone testing and received approvals from agencies including CB, CCC, CE, cURus, and TUVgs.
Environmental compliance includes RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. The single output configuration makes it suitable for various power supply needs.
The PMF-24V200WCAB provides a single output of 24V at 8.4A, delivering 200W of power.
The PMF-24V200WCAB has an efficiency rating of 87%.
This converter is designed for chassis mount installation.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 190.0mm (7.48") length, 93.0mm (3.66") width, and 50.0mm (1.97") height.
It features adjustable output, power factor correction (PFC), and universal input.
