PMC-48V150W1BJ
Delta Electronics

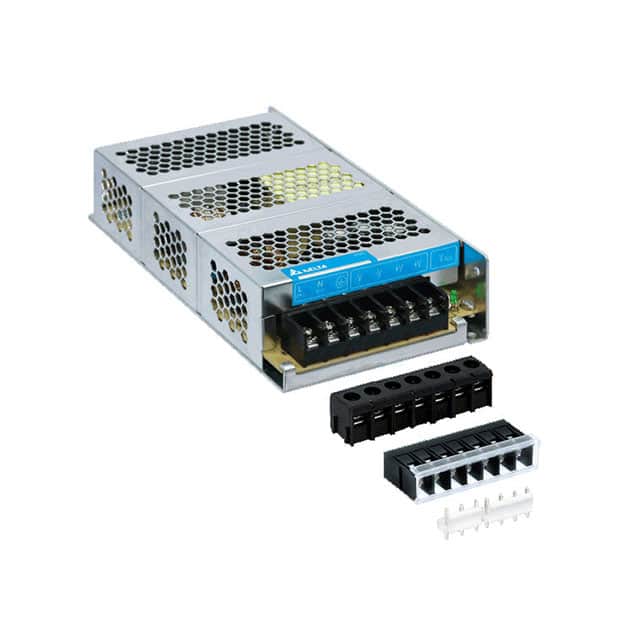

The Delta Electronics PMC-48V150W1BJ is a 150W AC/DC converter with a 48V output. It features an enclosed type with chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
This Delta Electronics PMC-48V150W1BL is a 150W AC/DC converter with a 48V output voltage. Designed as an enclosed unit, it is suitable for chassis mounting.
Key electrical specifications include an efficiency of 91% and a maximum output current of 3.125A. The converter supports adjustable output, has DC input capability, and includes PFC (Power Factor Correction) with a universal input range. It operates within a temperature range of -10°C to 70°C with derating.
With dimensions of 178.0mm x 97.0mm x 38.0mm, this converter is designed for ITE (Commercial) applications. It holds approvals from CB, CCC, CE, cURus, and SIQ, indicating compliance with various international standards. The unit has a single output and provides 3kV of isolation voltage.
The output voltage is 48V and the power is 150W (3.125A).
The typical efficiency is 91%.
The operating temperature range is -10°C to 70°C with derating.
The dimensions are 178.0mm (length) x 97.0mm (width) x 38.0mm (height).
It is designed for chassis mount installation.
It is approved by CB, CCC, CE, cURus, and SIQ.
The isolation voltage is 3 kV.
