| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

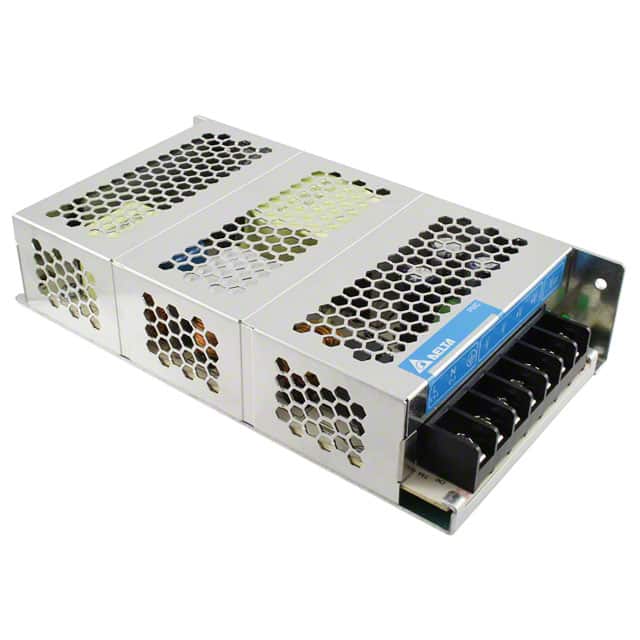

The Delta Electronics PMC-48V150W1BA is a panel mount AC/DC power supply designed for industrial environments. It offers a nominal output voltage of 48Vdc and a maximum output power of 150W, with an output current of 3.125A.
The power supply features a universal AC input voltage range of 85-264 Vac and can also accept a DC input voltage range of 125-375 Vdc. It boasts high efficiency, rated at over 91.0% at 230 Vac and 100% load, and includes Power Factor Correction (PFC).
Designed for reliability, the PMC-48V150W1BA has a wide operating temperature range from -10°C to +70°C. Its full corrosion-resistant aluminum casing provides durability and protection. The unit is safety approved according to IEC/UL 60950-1 and IEC/EN/UL 62368-1 standards, and conforms to EMI standards EN 55032 Class B.
Key features include adjustable output, DC input capability, and universal input. The unit is designed for chassis mounting, making it suitable for various industrial applications.
The nominal output voltage is 48 Vdc, with an adjustment range of 44-53 Vdc.
The maximum output power is 150W, and the maximum output current is 3.125A.
The input voltage range is 85-264 Vac, and it also supports a DC input range of 125-375 Vdc.
The operating temperature range is from -10°C to +70°C.
It is safety approved according to IEC/UL 60950-1 and IEC/EN/UL 62368-1, and conforms to EMI standard EN 55032 Class B.
The MTBF is rated at over 700,000 hours as per Telcordia SR-332.
