| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

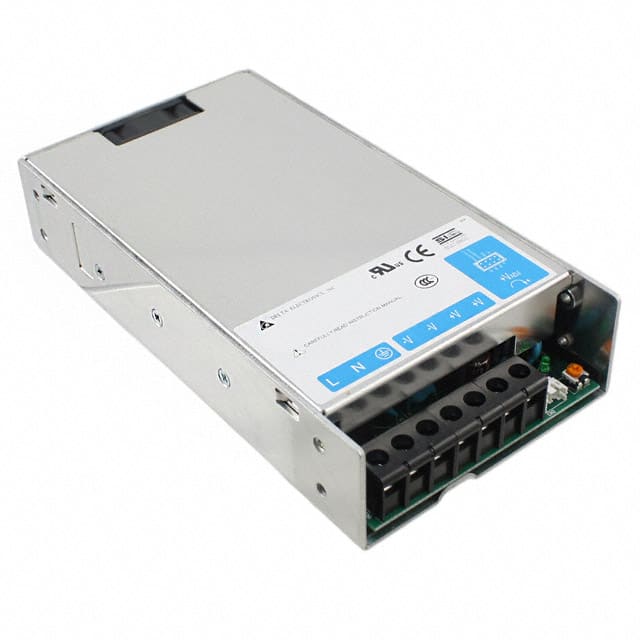

The Delta Electronics PMC-24V300W1BA is a high-performance AC/DC power supply designed for demanding industrial environments. It offers a nominal output voltage of 24V and a substantial 300W power capacity.
Key electrical specifications include a wide universal AC input voltage range (85-264 Vac) and a DC input capability (125-375 Vdc). The converter boasts high efficiency, rated at 87% at 100% load, and a power factor greater than 0.99 at 115Vac. It includes protections against overvoltage, overcurrent, and overtemperature.
Designed for robust operation, the PMC series features a full corrosion-resistant aluminum casing and IP20 certification. It operates within a temperature range of -10°C to +70°C with derating. The unit is designed for chassis mounting, making it suitable for integration into various systems.
This power supply is approved by multiple agencies including CB Scheme, CE, EAC, EN, SIQ, and UL, and complies with standards such as IEC/EN/UL 60950-1 and IEC/EN/UL 62368-1, as well as EMI standards EN 55032 Class B. It is suitable for ITE (Commercial) applications.
The nominal output voltage is 24 Vdc.
The maximum power output is 300W.
The operating temperature range is -10°C to +70°C.
It is designed for chassis mounting.
It complies with IEC/EN/UL 60950-1, IEC/EN/UL 62368-1, and EMI to EN 55032, Class B.
The MTBF is rated at over 700,000 hours per Telcordia SR-332.
