PMC-24V150W1BJ
Delta Electronics

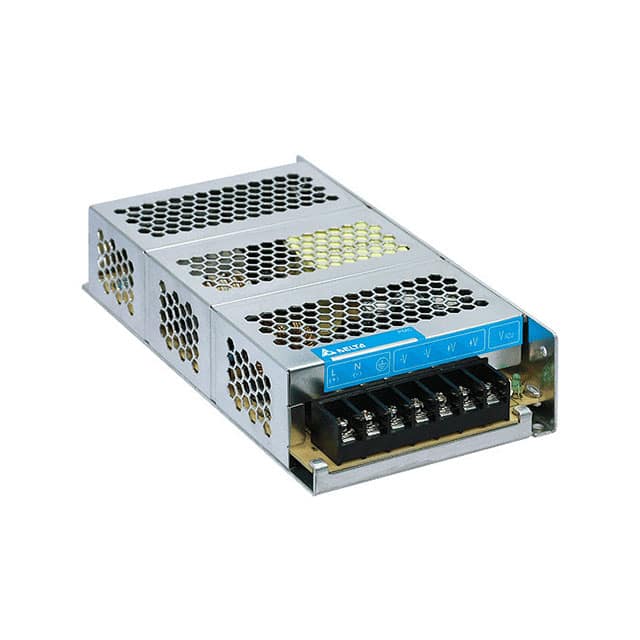

The Delta Electronics PMC-24V150W1BJ is a 150W AC/DC converter with a 24V output. It features an enclosed design suitable for chassis mounting.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |
This Delta Electronics PMC-24V150W1BL is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a 150W output power with a 24V voltage rating and a current of 6.25A.
The converter supports adjustable output, DC input capability, and Power Factor Correction (PFC), along with universal input. It is designed for chassis mounting and operates within a temperature range of -10°C to 70°C, with derating. The unit boasts an efficiency of 89% and meets various approval standards including CB, CCC, CE, cURus, and SIQ.
Key mechanical dimensions include a length of 178.0mm, width of 97.0mm, and height of 38.0mm. It has a single output and provides 3kV of voltage isolation.
24V nominal with adjustable output.
Chassis Mount.
-10°C to 70°C with derating.
150W.
CB, CCC, CE, cURus, SIQ.
3kV.
6.25A.
