| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage |

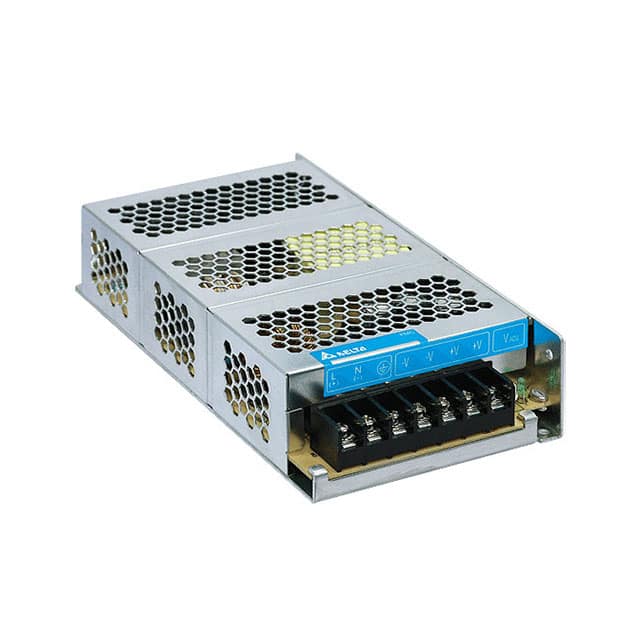

This Delta Electronics AC/DC converter, part number PMC-24V150W1AJ, is an enclosed unit designed for ITE (Commercial) applications. It provides a single output of 24V at 150W, with an efficiency of 88% and features such as adjustable output, DC input capability, load sharing, and universal input.
The converter is designed for chassis mounting and operates within a temperature range of -10°C to 70°C with derating. Its dimensions are 178.0mm x 97.0mm x 38.0mm. It holds approvals from CB, CE, cURus, and TUV.
Key electrical specifications include a current rating of 6.25A and a voltage rating of 3 kV. The unit is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
The output voltage is 24V and the output current is 6.25A.
The power rating is 150W.
The efficiency is 88%.
The operating temperature range is -10°C to 70°C with derating.
It uses chassis mount mounting.
The dimensions are 178.0mm x 97.0mm x 38.0mm (7.01" x 3.82" x 1.50").
It is approved by CB, CE, cURus, and TUV.
