| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

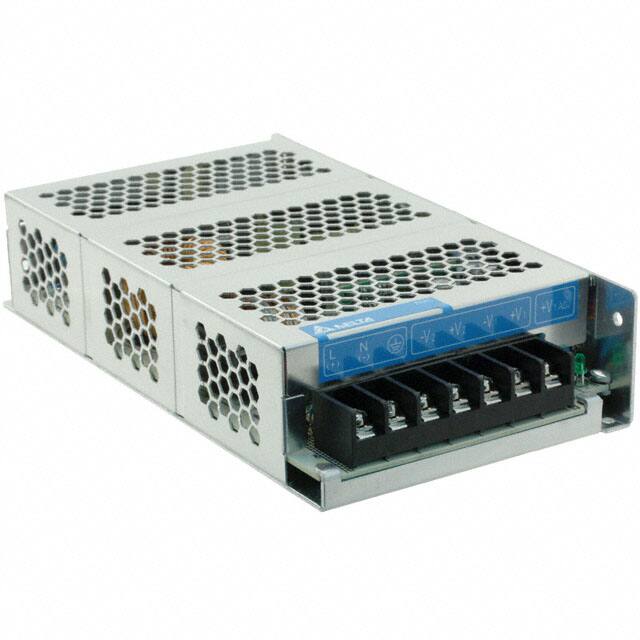

The Delta Electronics PMC-24V150W1AA is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers a power output of 150W with a 24V output voltage and a current rating of 6.25A.
This converter features a chassis mount type and dimensions of 178.0mm x 97.0mm x 38.0mm. Key electrical specifications include an efficiency of 86% and a voltage isolation rating of 3 kV. It operates within a temperature range of -20°C to 70°C with derating.
Additional features include adjustable output, DC input capability, and universal input. The unit is approved by CCC, CE, and cURus, indicating compliance with various safety and performance standards. It has a single output and is RoHS3 compliant.
The PMC-24V150W1AA is an enclosed AC/DC converter with chassis mount design.
The operating temperature range is -20°C to 70°C with derating.
The efficiency is rated at 86%.
The output is 24V at 6.25A, delivering 150W.
It is approved by CCC, CE, and cURus.
Adjustable output, DC input capability, and universal input.
This converter is designed for ITE (Commercial) applications.
