| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

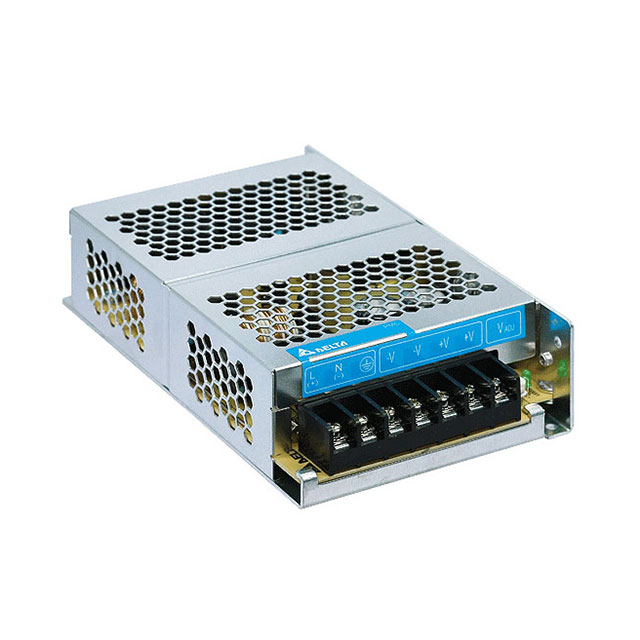

The Delta Electronics PMC-24V100W1AJ is an enclosed AC-DC power supply module designed for ITE (Commercial) applications. It provides a single 24V output with a maximum power of 100W and a current rating of 4.17A.
This converter features a universal input voltage range of 85-264 VAC, making it suitable for global use. Key electrical specifications include an efficiency of 86% and an isolation voltage of 3 kV. Additional features include adjustable output, DC input capability, and compliance with various agency approvals such as CB, CCC, CE, cURus, and Nemko.
The unit is designed for chassis mounting and operates within a temperature range of -10°C to 70°C with derating. Its dimensions are 158.0mm x 97.0mm x 38.0mm. The PMC-24V100W1AJ is RoHS3 Compliant and REACH Unaffected.
The input voltage range is 85-264 VAC and the output voltage is 24V.
Chassis Mount.
-10°C to 70°C with derating.
100W.
86%.
3kV.
CB, CCC, CE, cURus, Nemko.
