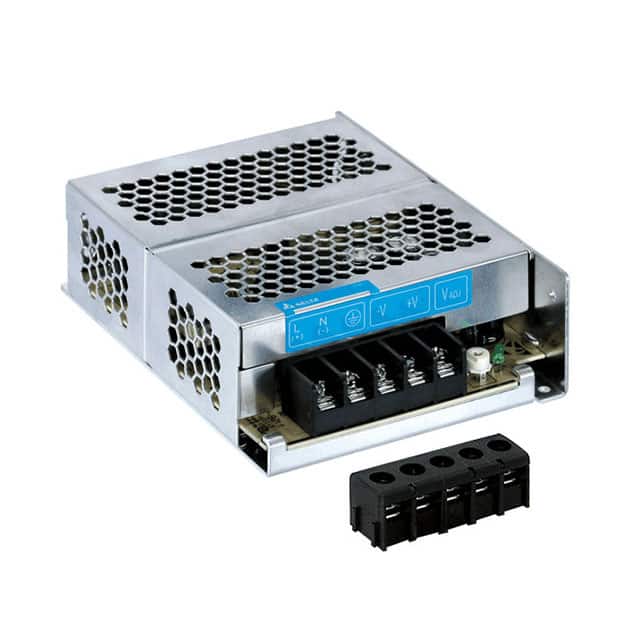

This Delta Electronics PMC-24V075W1AJ is an enclosed AC/DC power supply converter designed for ITE (Commercial) applications. It delivers a continuous output power of 75W with a current rating of 3.12A and an output voltage of 24V.
The converter features adjustable output, DC input capability, and universal input, making it versatile for various power solutions. It operates within a temperature range of -10°C to 70°C with derating and boasts an efficiency of 87%. The unit is designed for chassis mounting and has dimensions of 128.0mm x 97.0mm x 38.0mm.
Key electrical specifications include a 3kV isolation voltage. The product is approved by CB, CCC, CE, cURus, and Nemko. It is RoHS3 Compliant and has an MSL rating of 1.
The operating temperature range is -10°C to 70°C with derating.
The efficiency is 87%.
The output current is 3.12A.
It uses chassis mount.
The voltage isolation is 3kV.
