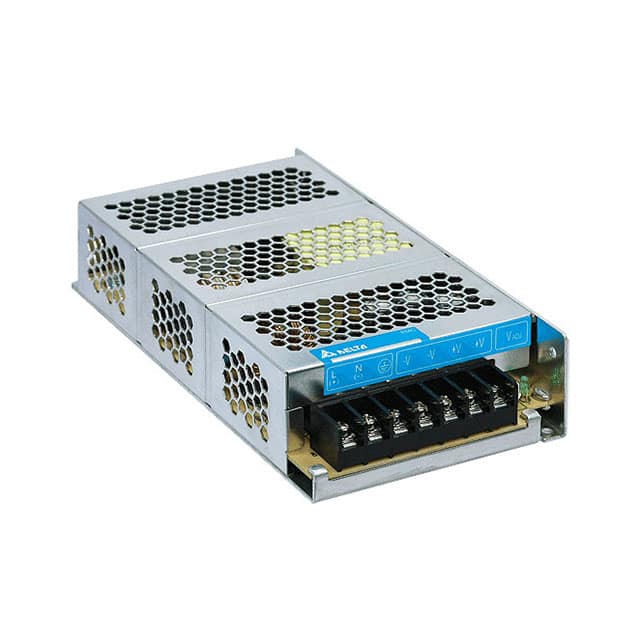

The Delta Electronics PMC-12V150W1BL is a 150W enclosed AC/DC power supply designed for industrial environments. It offers a nominal output voltage of 12V and a wide universal AC input range from 85Vac to 264Vac, also supporting DC input from 125Vdc to 375Vdc. This power supply boasts high efficiency, rated at over 87% at 115Vac and over 88% at 230Vac.
Key features include overvoltage, overcurrent, and over-temperature protections, along with adjustable output voltage and a hold-up time greater than 30ms. The unit is constructed with a full aluminum casing for lightweight and corrosion-resistant handling, and it can withstand shock and vibration according to IEC60068-2.
Designed for ITE (Commercial) applications, the PMC-12V150W1BL is suitable for chassis mounting. It is certified according to IEC/EN/UL 62368-1 safety standards and CB certified for worldwide use. The operating temperature range is -10°C to +70°C with derating.
The nominal output voltage is 12Vdc with a maximum output current of 12.5A, providing 150W of output power.
The AC input voltage range is 85-264Vac, and the DC input voltage range is 125-375Vdc.
The operating temperature range is -10°C to 70°C with derating.
It is approved to CB, CCC, CE, cURus, and TUVgs standards, and complies with IEC/EN/UL 62368-1 safety standards.
The typical efficiency is 88% at full load, with a minimum of 87% at 115Vac and 88% at 230Vac.
The dimensions are 178.0mm x 97.0mm x 38.0mm (7.01" x 3.82" x 1.50") and it weighs 0.54 kg (1.19 lb).
The converter includes overvoltage, overcurrent, and overtemperature protection.
