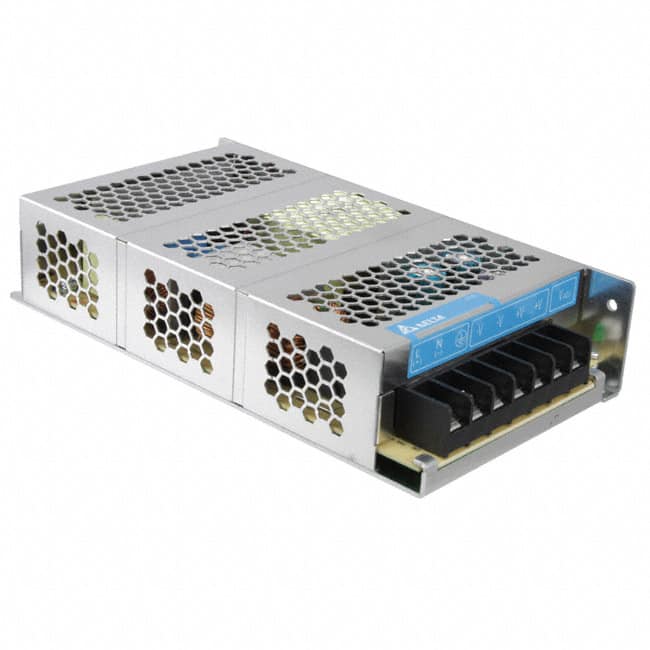

This Delta Electronics PMC-12V150W1BA is an enclosed AC/DC converter designed for ITE (Commercial) applications. It delivers 150W of power with a 12.5A output current and features adjustable output, DC input capability, PFC, and universal input. The converter has an efficiency of 88% and operates within a temperature range of -20°C to 70°C with derating.
Designed for chassis mounting, this unit offers a robust solution for power conversion needs. It has passed various approval agencies including CB, CCC, CE, cURus, and TUV, ensuring compliance with industry standards. The dimensions are 178.0mm x 97.0mm x 38.0mm.
The operating temperature range is -20°C to 70°C with derating.
The output voltage is 12V.
The power rating is 150W.
The efficiency is 88%.
Dimensions are 178.0mm x 97.0mm x 38.0mm (7.01" x 3.82" x 1.50").
It is approved by CB, CCC, CE, cURus, and TUV.
The mounting type is chassis mount.
