| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

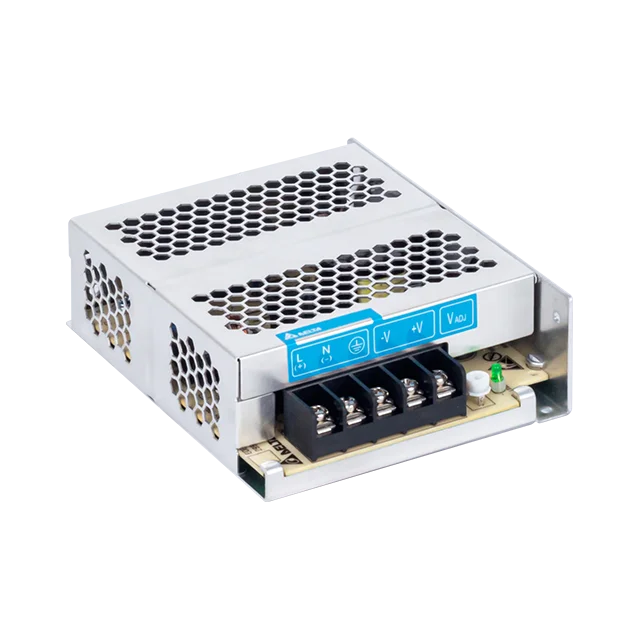

This Delta Electronics PMC-12V060W1NA is an AC/DC converter designed for ITE (Commercial) applications. It provides a 12V output with a maximum current of 5A, delivering a total power of 60W.
The converter features an enclosed design with conformal coating, suitable for chassis mounting. Key electrical specifications include an efficiency of 86% and adjustable output, DC input capability, and universal input voltage range. It operates within a temperature range of -20°C to 70°C with derating.
Safety and compliance are supported by approvals such as CB Scheme, CE, EAC, EN, NEC Class 2, SIQ, and UL. The unit also meets various standard numbers including 50581, 55024, 55032, 60950-1, 61000-3-2, and 61000-3-3. Its dimensions are 128.0mm x 97.0mm x 38.0mm.
The converter operates safely between -20°C and 70°C, with output derating required at higher temperatures.
This power supply uses a chassis mount configuration for secure installation within larger enclosures.
Yes, the unit is capable of accepting both universal AC input and direct current input.
The device provides a dielectric strength of 3 kV to ensure safe isolation between circuits.
It holds UL, CE, CB Scheme, EAC, EN, NEC Class 2, and SIQ approval agencies.
