| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

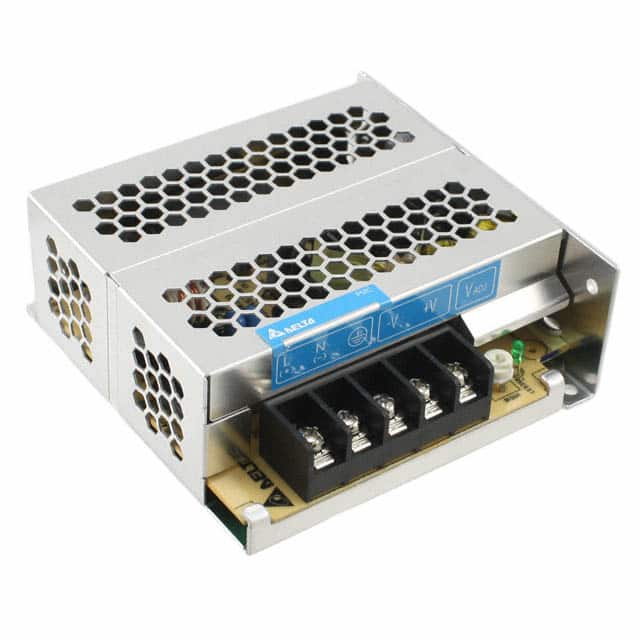

The Delta Electronics PMC-12V035W1AA is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a power output of 35W and a current rating of 3A.
Key electrical specifications include a universal input capability and an efficiency of 84%. The unit offers adjustable output and can accept DC input. It is designed for chassis mounting, with dimensions of 98.0mm x 97.0mm x 38.0mm.
This converter is approved by multiple agencies including CB, CCC, CE, cURus, and TUVgs. It operates within a temperature range of -20°C to 70°C with derating. The RoHS status is listed as RoHS3 Compliant, and the Moisture Sensitivity Level is 1 Unlimited.
The output voltage is 12V and the output current is 3A.
The power rating is 35W.
The efficiency is 84%.
The operating temperature range is -20°C to 70°C with derating.
It uses chassis mount.
The dimensions are 98.0mm (length) x 97.0mm (width) x 38.0mm (height).
