PMT-12V35W1AA
Delta Electronics
The Delta Electronics PMT-12V35W1AA is an enclosed AC/DC converter with a 35W power rating and 12V output. It features chassis mounting and universal input.
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

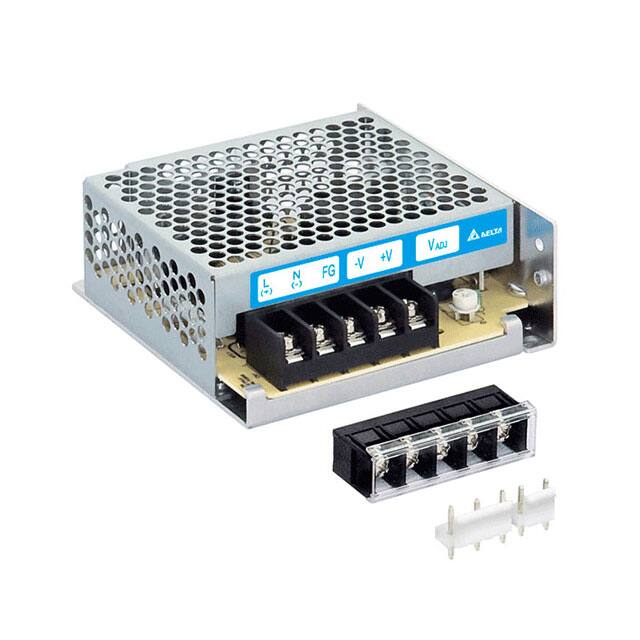

The Delta Electronics PMB-12V35W1AH is an enclosed AC/DC power supply designed for ITE (Commercial) applications. It provides a stable 12V output with a maximum current of 2.92A, delivering up to 35W of power.
This power supply operates with a wide input voltage range of 85 to 264 VAC, ensuring compatibility in various regions. It boasts an efficiency of 84% and features adjustable output and universal input capabilities. The unit is designed for chassis mounting, offering flexibility in system integration.
With an operating temperature range of -10°C to 70°C (with derating), the PMB-12V35W1AH is suitable for demanding environments. It has achieved several key approvals, including CB, CCC, CE, cURus, and TUV, indicating compliance with international safety standards. The dimensions are 98.0mm x 98.0mm x 38.0mm.
The output voltage is 12V.
The maximum output current is 2.92A.
The maximum power rating is 35W.
The input voltage range is 85 to 264 VAC.
The operating temperature range is -10°C to 70°C (With Derating).
It uses chassis mount.
The dimensions are 98.0mm x 98.0mm x 38.0mm.
