Mfr Part #:

PMA60F-5

Mfr Name: Cosel

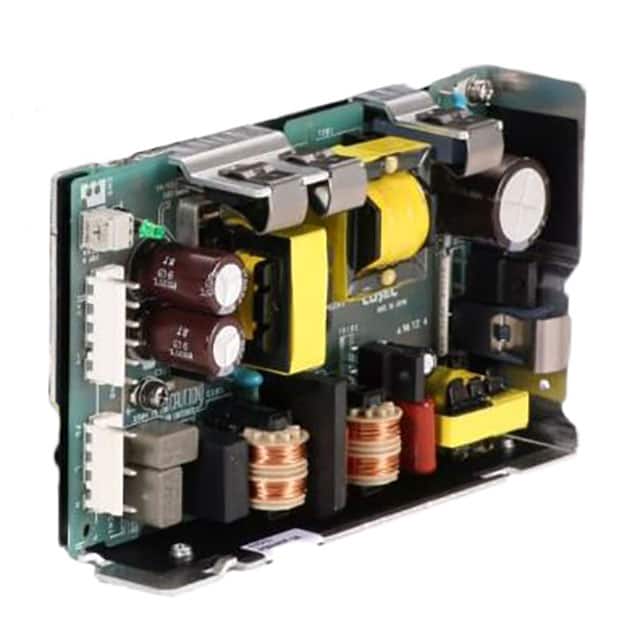

The Cosel PMA60F-5 is a 60W AC/DC converter providing a 5VDC output at 12A. It features a universal input voltage range of 85-264 VAC and a chassis mount design.

Stock on Request

PMA60F-5 Description

Short technical summary and product information.

The Cosel PMA60F-5 is an open-frame AC/DC power supply designed for medical equipment applications. It delivers a stable 5VDC output with a maximum current of 12A, providing a total output power of 60W.

This converter features a universal input voltage range from 85 to 264 VAC, making it suitable for global use. It boasts an efficiency of up to 83% and includes features like overcurrent protection and harmonic attenuation compliant with IEC61000-3-2.

The PMA60F-5 is designed for chassis mounting and operates within an ambient temperature range of -10°C to 70°C. Its compact dimensions of 134.9mm x 32.0mm x 82.0mm allow for integration into various systems.

PMA60F-5 Quick Information

Product Type: AC DC Converter

Series: PMA

Canonical Name: Cosel PMA60F-5 AC/DC Power Supply

Subcategory: AC DC Converters

PMA60F-5 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PMA60F-5 Features

Provides 5VDC output at 12A.
Universal input voltage range of 85-264 VAC.
Rated for 60W maximum output power.
Chassis mount open frame design.
Suitable for medical equipment applications.

PMA60F-5 Applications

Ideal for industrial control systems requiring 5V power.
Used in medical equipment with low leakage current.
Suitable for ITE and networking equipment.
Powering sensors and actuators in automation.

PMA60F-5 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the Cosel PMA60F-5?

85-264 VAC.

What is the output voltage and current?

5 VDC at 12 A.

What is the operating temperature range?

-10°C to 70°C with derating.

What is the mounting type and dimensions?

Chassis mount, 109.0 x 52.0 x 33.5 mm.

Does it have overcurrent protection?

Yes, works over 105% of rating and recovers.

What is the isolation voltage?

2 kV.

What is the typical efficiency?

74% at 100 VAC input, 78% at 200 VAC input.

Category	AC DC Converters
Manufacturer Name	Cosel
Applications	Medical
Approval Agency	CE, cURus, TUV
Current	12 A
Efficiency	78%
Height	82.0mm (3.23")
Input Frequency	50/60 Hz
Length	134.9mm (5.31")
Medical Grade	No
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature	-10°C ~ 70°C
Power (Watts)	60 W
Type	Open Frame
Voltage	5 VDC
Width	32.0mm (1.26")
