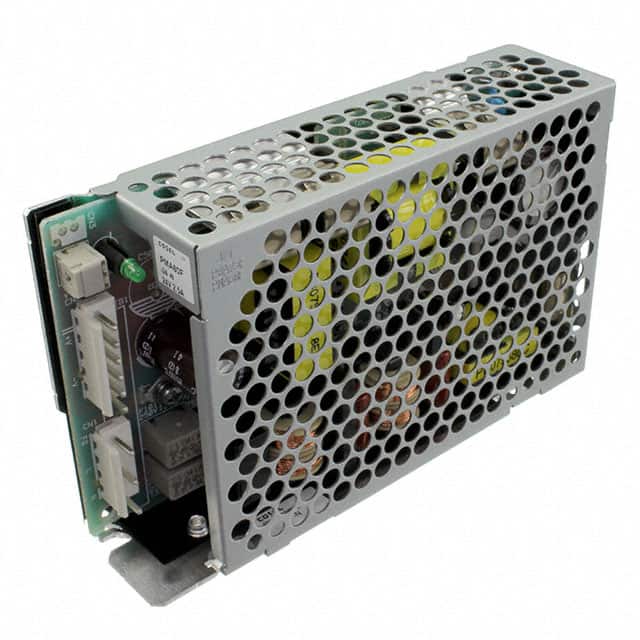

The Cosel PMA60F-24-N is an enclosed AC-DC power supply with a 24V output voltage and a maximum output wattage of 60W. It is designed for medical applications and features a universal input voltage range of 85-264 VAC.
This power supply offers high efficiency, with typical values of 76% at 100V AC input and 79% at 200V AC input. It includes features such as overcurrent protection that works over 105% of rating and recovers. The operating temperature range is -10°C to 70°C.
Designed for chassis mounting, the PMA60F-24-N has dimensions of 134.9mm x 32.0mm x 82.0mm. It complies with IEC61000-3-2 for harmonic attenuation and has power factor correction. Safety agency approvals include CE, cURus, and TUV.
Key electrical specifications include a 2 kV isolation voltage, a 2.5A output current, and a start-up time of 200ms typical at 100V AC input and full load. The hold-up time is 20ms typical.
The input voltage range is 85-264 VAC.
The output is 24 VDC at 2.5 A, with a maximum power of 60 W.
The operating temperature range is -10°C to 70°C.
Yes, it has overcurrent protection that works above 105% of rating and recovers automatically.
Typical efficiency is 76% at 100 VAC input and 79% at 200 VAC input.
The isolation voltage is 2 kV.
