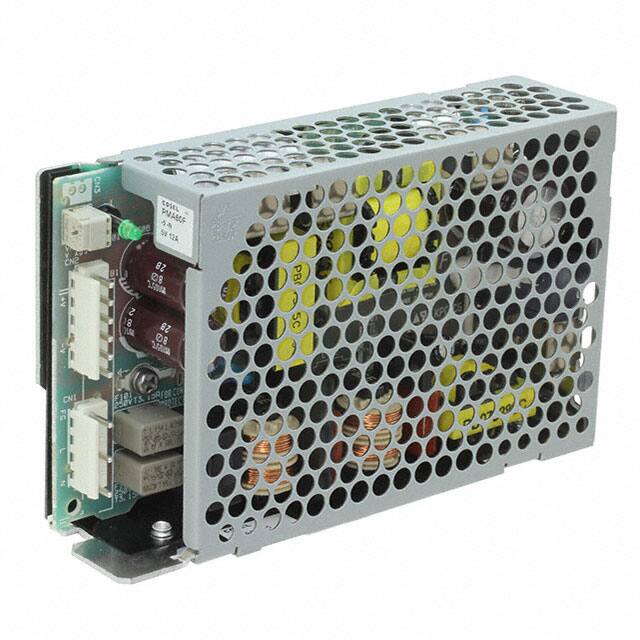

The Cosel PMA60F-15-N is a versatile AC-DC power supply designed for medical equipment and other applications requiring reliable power conversion. This enclosed unit features a chassis mount for easy integration into systems.
With a universal input voltage range of 85-264V AC, the PMA60F-15-N provides flexibility for global use. It delivers a stable 15V DC output at up to 4A, with a maximum wattage of 60W. The power supply complies with IEC61000-3-2 for harmonic attenuation and offers typical efficiencies of 76% at 100V AC and 79% at 200V AC.
Key electrical specifications include overcurrent protection that activates above 105% of rating. The operating temperature range is -10°C to 70°C, ensuring performance in various environments. Safety agency approvals include CE, cURus, and TUV, underscoring its suitability for demanding applications.
Mechanical dimensions are 134.9mm in length, 32.0mm in width, and 82.0mm in height. The unit is designed for robust performance and reliability in its intended applications.
The output voltage is 15V DC.
The maximum output current is 4A.
The input voltage range is 85-264V AC.
The operating temperature range is -10°C to 70°C.
The PMA60F-15-N is designed for chassis mounting.
The dimensions are 134.9mm x 32.0mm x 82.0mm.
