| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Input Frequency | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power | |
| Ripple | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

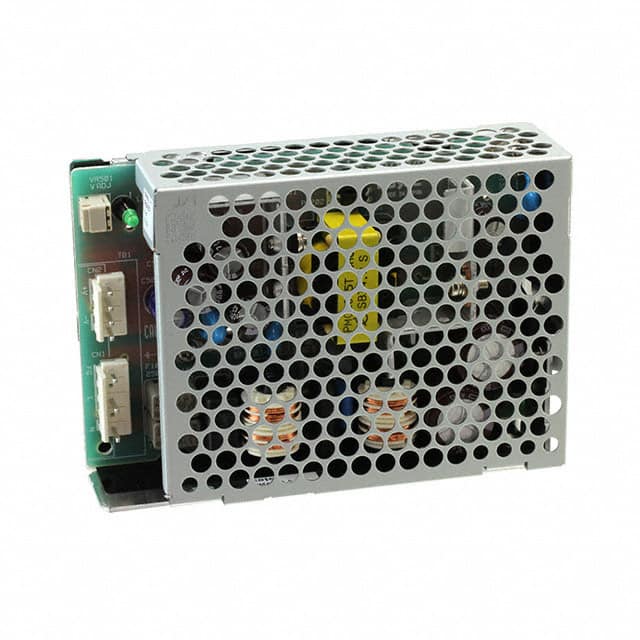

The Cosel PMA30F-5-N is an enclosed, chassis mount AC/DC power supply designed for medical equipment applications. It provides a stable 5VDC output at 6A, delivering a total of 30W of power.
This power supply operates with a universal input voltage range from 85 to 264 VAC and supports input frequencies of 47 to 440 Hz. It boasts an efficiency of 79% and features a harmonic attenuator compliant with IEC61000-3-2.
Key electrical specifications include a line regulation of 20mV max, load regulation of 40mV max, and a ripple of 80mVp-p max. The operating temperature range is -10°C to 70°C. The unit has a 5-year warranty.
With dimensions of 119.9mm x 31.0mm x 82.0mm, the PMA30F-5-N is suitable for various integration needs. It holds approvals from CE, cURus, and TUV, making it a reliable choice for demanding applications.
85 VAC to 264 VAC.
5 VDC at 6 A (30 W).
-10°C to 70°C.
79% typical.
2 kVAC.
Chassis mount, enclosed package.
