| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

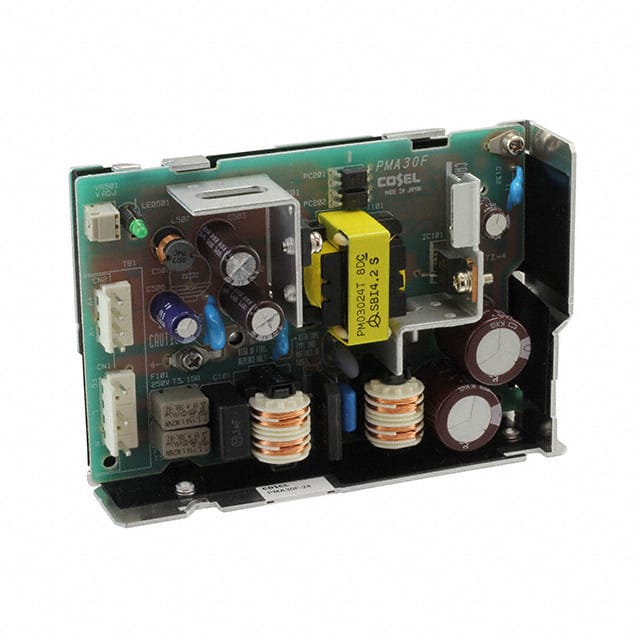

The Cosel PMA30F-24 is a versatile AC/DC power supply designed for medical applications. It provides a stable 24VDC output at 1.3A, with a maximum wattage of 31.2W. The unit accepts a wide universal input voltage range of 85 to 264 VAC, making it suitable for global use.
This open-frame converter is designed for chassis mounting and offers a high isolation voltage of 2kV. It operates within a temperature range of -10°C to 70°C. Key electrical specifications include typical efficiencies of 76% at 100V AC input and 79% at 200V AC input. It also features overcurrent protection that activates above 105% of rating.
Compliance includes RoHS3, REACH Unaffected, and an MSL of 1. The PMA30F-24 is approved by CE, cURus, and TUV, ensuring suitability for various demanding applications. Its robust design and reliable performance make it a solid choice for power solutions in medical equipment.
85-264 VAC.
24 VDC at 1.3 A.
-10°C to 70°C.
Chassis Mount.
Yes, it works over 105% of rating and recovers.
19.20 to 27.00 V.
