| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Type | |
| Voltage | |
| Width |

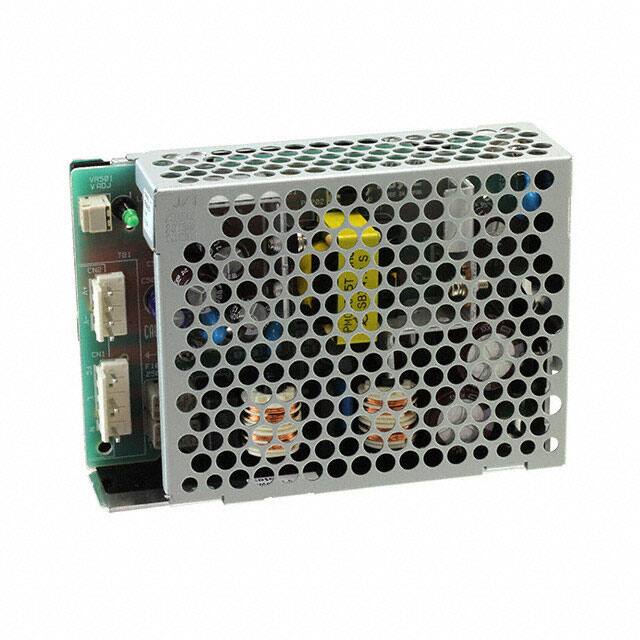

The Cosel PMA30F-15-N is a 30W enclosed AC-DC power supply designed for medical equipment. It provides a stable 15V DC output at up to 2A current.
This converter features a universal input voltage range of 85-264 VAC, making it suitable for global use. It boasts an efficiency of 80% and includes features like overcurrent protection. The operating temperature range is -10°C to 70°C.
Designed for easy integration, the PMA30F-15-N utilizes a chassis mount type. Its dimensions are 119.9mm x 31.0mm x 82.0mm. The unit is approved by CE, cURus, and TUV, and complies with harmonic attenuation standards (IEC61000-3-2).
Key specifications include a 2kV isolation voltage, a start-up time of 200ms, and a hold-up time of 20ms. It also offers an output voltage adjustment range of 13.20-18.00V.
-10°C to 70°C
119.9 mm x 31.0 mm x 82.0 mm
85-264 VAC
15 VDC
2 A
80%
2 kV
