| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Input Frequency | |
| Input Voltage | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| SVHC Present | |
| Type | |
| Voltage |

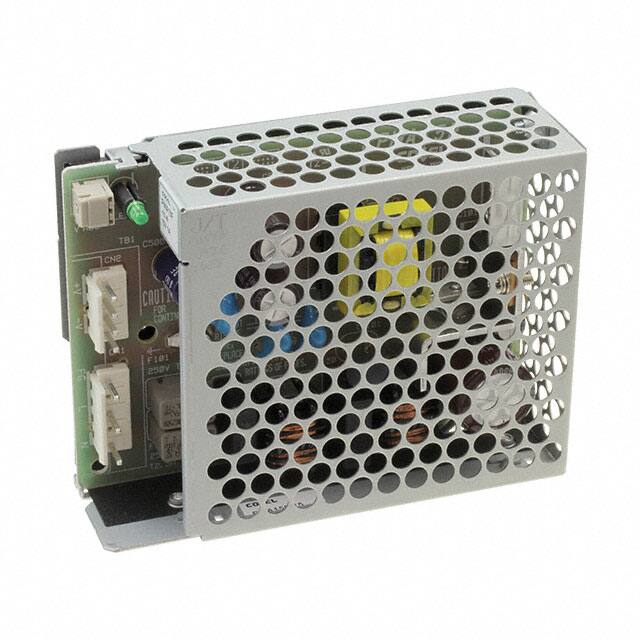

The Cosel PMA15F-5-N is a medical-grade AC-DC power supply designed for reliable operation in demanding environments. It offers a single output of 5V with a maximum current of 3A, delivering up to 15W of power. The unit accepts a universal input voltage range of 85-264 VAC, making it suitable for global applications.
Key electrical specifications include an efficiency of 74% at 200V input and a typical start-up time of 200ms. It incorporates overcurrent protection that activates above 105% of rating. The power supply is designed for chassis mounting and has an enclosed type construction.
This series complies with various safety agency approvals including CE, cURus, and TUV, and is suitable for medical equipment applications. It operates within a temperature range of -10°C to 70°C.
85-264 VAC at 50/60 Hz.
5VDC at 3A, 15W maximum.
-10°C to 70°C.
CE, cURus, and TUV.
74% typical.
Yes, it activates above 105% of rated output and recovers automatically.
Chassis mount, enclosed package.
