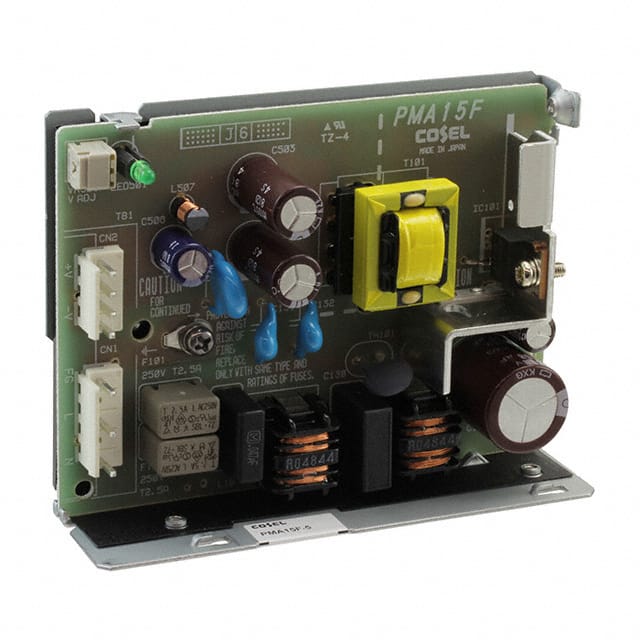

The Cosel PMA15F-5 is a versatile AC/DC power supply designed for medical equipment. It operates with a universal input voltage range from 85 to 264 VAC, making it suitable for global use.
This converter provides a stable 5V output with a maximum current of 3A, delivering up to 15W of power. Key electrical specifications include a line regulation of 20mV maximum and a load regulation of 40mV maximum. The ripple and noise are kept to a minimum, with a maximum of 80mVp-p at 0 to +50°C.
Designed for reliability, the PMA15F-5 operates within a temperature range of -10°C to 70°C. It features overcurrent protection and a hold-up time of 20ms at 100V AC input. The unit is chassis mountable and comes in an open frame package.
Compliance includes CE, cURus, and TUV approvals, along with RoHS3 compliance. Its applications are primarily in medical electric equipment.
The PMA15F-5 accepts universal AC input from 85 to 264 VAC.
It provides a single 5V output at up to 3A continuous.
The maximum output power is 15W.
The operating temperature range is -10°C to +70°C.
It is a chassis mount open frame unit.
Yes, overcurrent protection works above 105% of rating and recovers automatically.
Typical efficiency is 74% at 200VAC input.
