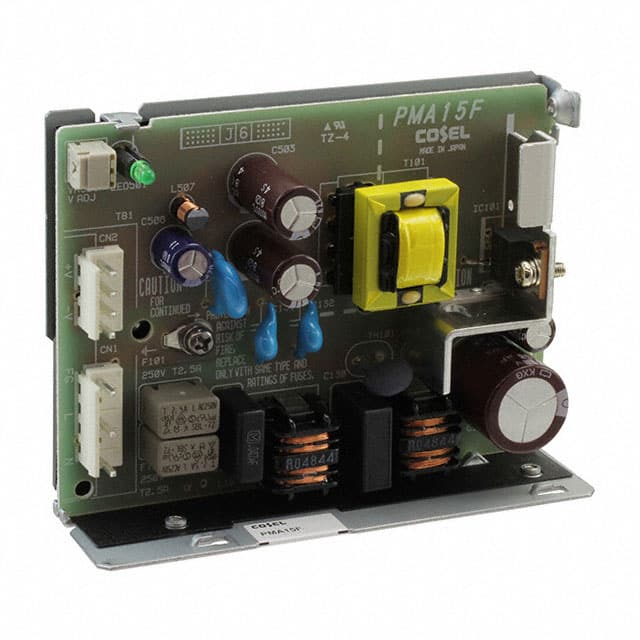

The Cosel PMA15F-24 is an open frame AC-DC power supply designed for medical equipment. It offers a single 24V output with a maximum current of 0.7A. The unit accepts a universal input voltage range of AC85 - 264V and achieves an efficiency of up to 79% at ACIN 200V.
Key electrical specifications include line regulation of 96mV maximum and load regulation of 150mV maximum. The ripple and noise are kept within 180mVp-p at -10 to 0C. It features overcurrent protection that activates above 105% of rating.
With dimensions of 103.1mm x 31.0mm x 78.0mm, this power supply is suitable for chassis mounting. It operates within an ambient temperature range of -10°C to 70°C. The PMA15F-24 is approved by CE, cURus, and TUV, making it suitable for various medical applications.
The output voltage is 24V.
The maximum output current is 0.7A.
The input voltage range is AC85 - 264V.
The efficiency is 79% typical at ACIN 200V.
The operating temperature range is -10°C to 70°C.
The dimensions are 103.1mm x 31.0mm x 78.0mm.
It has CE, cURus, and TUV approvals.
