| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Frequency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Type | |
| Voltage | |
| Width |

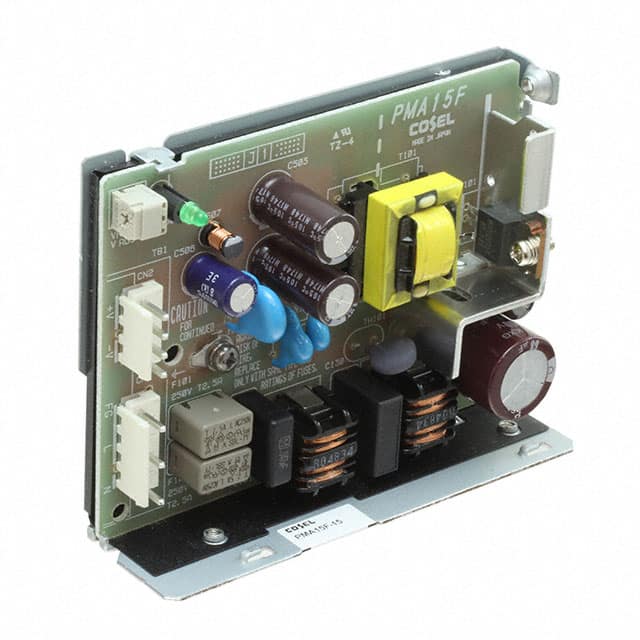

The Cosel PMA15F-15 is an open-frame AC-DC power supply designed for medical equipment. It operates with a universal input voltage range of 85 to 264 VAC and provides a stable 15V DC output at up to 1A.
Key electrical specifications include an efficiency of 79% at ACIN 200V, a hold-up time of 20ms, and an inrush current of 30A at ACIN 200V. The unit offers overcurrent protection and features a 2kV isolation voltage. Its operating temperature range is -10°C to 70°C.
Designed for chassis mounting, this power supply has dimensions of 103.1mm x 31.0mm x 78.0mm. It complies with safety agency approvals including CE, cURus, and TUV, making it suitable for demanding applications requiring reliable power conversion.
85 - 264 VAC
15V at 1A
2kV
-10°C to 70°C
Chassis mount, open frame
Yes, from 13.20V to 18.00V
Yes, it works over 105% of rating and recovers automatically.
