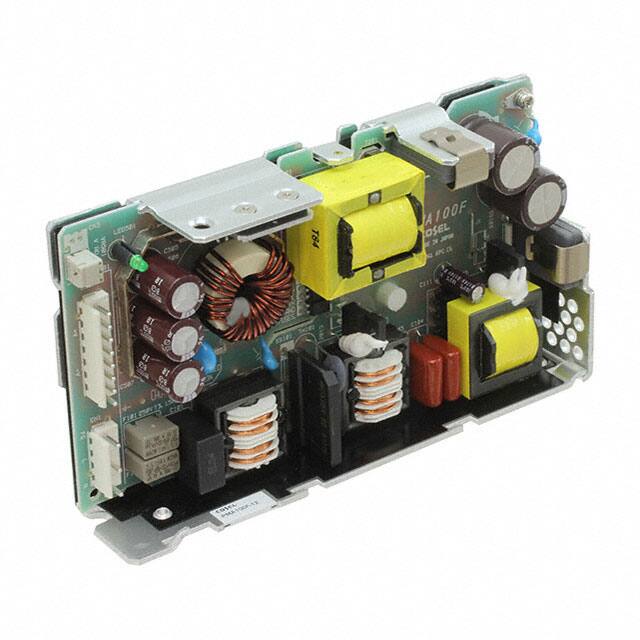

The Cosel PMA100F-3R3 is an AC/DC power supply converter with a single output of 3.3V and a maximum current of 20A. It is designed for medical applications and features a chassis mount type.
The converter operates with a universal input voltage range from 85 to 264 VAC and has an efficiency rating of 78%. Key electrical specifications include a line regulation of 96mV maximum and a load regulation of 150mV maximum. The operating temperature range is -10°C to 70°C.
With dimensions of 167.9mm x 34.0mm x 93.0mm, the PMA100F-3R3 is suitable for integration into various systems. It complies with safety agency approvals including CE, cURus, and TUV, and meets RoHS3 compliance standards.
The output voltage is 3.3V and the output current is 20A.
The input voltage range is 85-264 VAC.
The operating temperature range is -10°C to 70°C.
Yes, overcurrent protection works over 105% of the rating and recovers automatically.
Efficiency is 76% typical at 100VAC input and 79% typical at 200VAC input.
The isolation voltage is 2 kV.
The mounting type is chassis mount.
