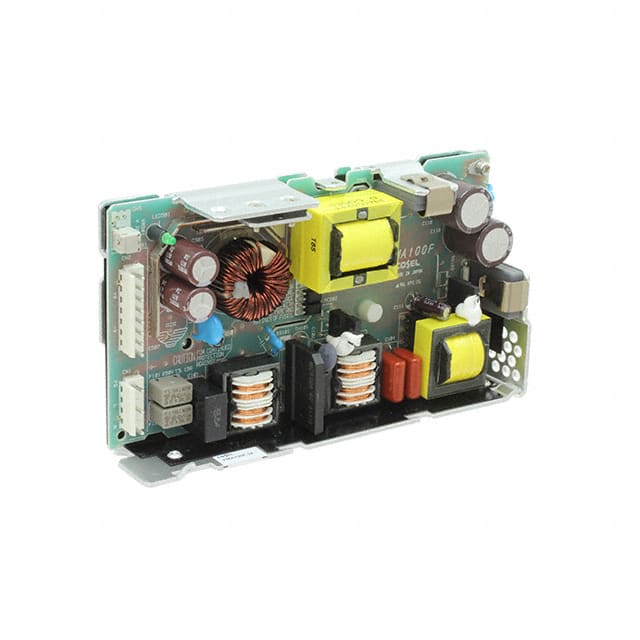

The Cosel PMA100F-24 is an AC DC converter from the PMA series, offering a single output of 24V DC at 4.5A, delivering 100W of power. It operates from a universal AC input of 85-264 VAC at 50/60 Hz and provides 2 kV input-to-output isolation. With an efficiency of 86%, it is designed for medical electric equipment and complies with safety standards UL60601-1, CSA-C22.2 No.601.1, and EN60601-1, as well as EMI standards including FCC-B and CISPR11-B.
The converter features an open frame, chassis mount design, with dimensions of 167.9 mm x 34.0 mm x 93.0 mm. It includes internal dual fuses and a harmonic attenuator meeting IEC61000-3-2. The operating temperature range is -10°C to 70°C, and it carries CE, cURus, and TUV approvals.
This power supply is suitable for medical and other applications requiring a reliable, isolated 24V source. The PMA series offers a 5-year warranty as per the instruction manual.
The output voltage is 24 V DC.
The output current is 4.5 A and the power is 100 W.
The input voltage range is 85-264 VAC, universal input.
The operating temperature range is -10°C to 70°C.
The mounting type is chassis mount and the form factor is open frame.
The RoHS status is reported as RoHS3 Compliant, but this is unverified (low confidence).
It has CE, cURus, and TUV approvals.
