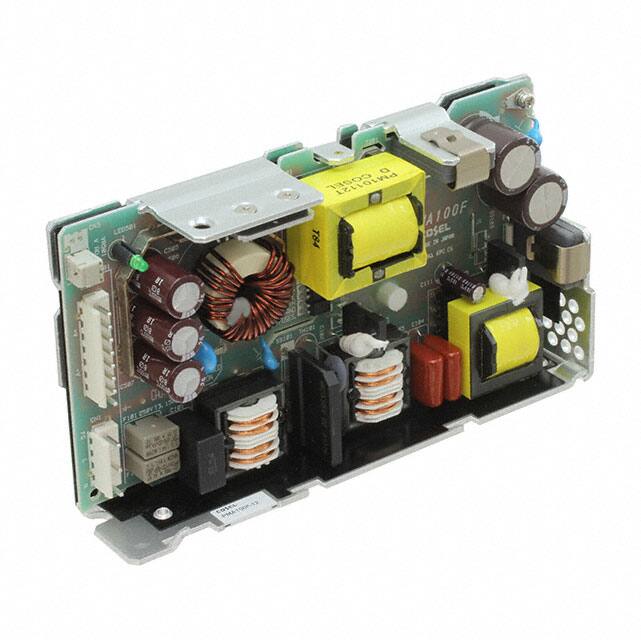

The Cosel PMA100F-12 is a versatile AC/DC power supply designed for medical electric equipment. It operates with a universal input voltage range of AC85 to 264V, making it suitable for global applications.
This open frame converter provides a stable 12V DC output with a maximum current of 8.5A. Key electrical specifications include an efficiency of up to 83% and a wide operating temperature range of -10°C to 70°C. It also features overcurrent protection and a hold-up time of 20ms at 100V AC input.
Designed for chassis mounting, the PMA100F-12 has dimensions of 167.9mm x 34.0mm x 93.0mm. Its features include harmonic attenuation compliant with IEC61000-3-2 and safety agency approvals such as CE, cURus, and TUV, ensuring reliability for medical applications.
The series complies with various EMI standards including FCC-B, CISPR11-B, and EN55022-B, and meets RoHS3 compliance. It is suitable for applications requiring a robust and reliable power solution in the medical field.
The output voltage is 12V DC.
The maximum output current is 8.5A.
The input voltage range is AC 85 to 264V.
The operating temperature range is -10°C to 70°C.
It is designed for chassis mounting.
The dimensions are 167.9mm in length, 34.0mm in width, and 93.0mm in height.
Yes, it is RoHS3 Compliant.
