Mfr Part #:

PM800HSA120

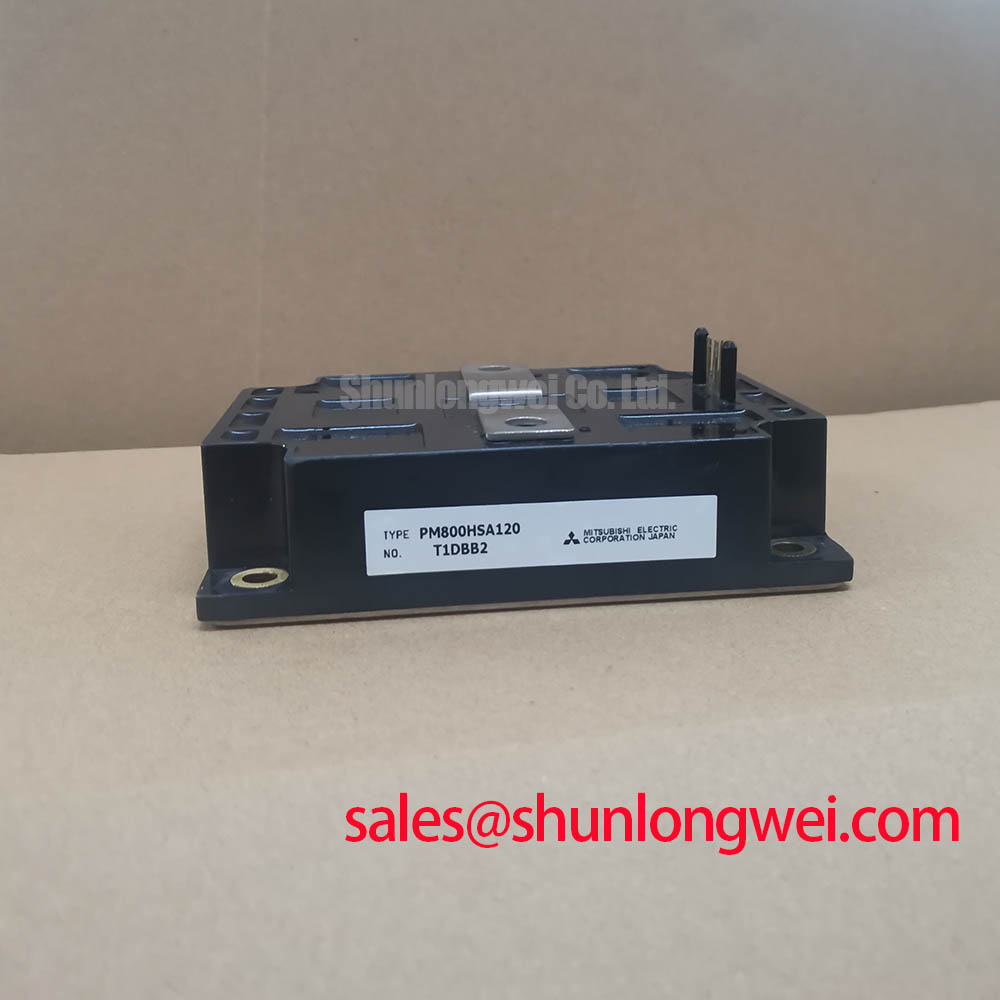

The Mitsubishi Electric PM800HSA120 is an Intelligent Power Module (IPM) with robust 1200V and 800A ratings. It integrates IGBT inverter power circuits with gate drive and protection logic.

✓ Total Stock: 45 pcs

$ Price Range: $2.54

PM800HSA120 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Fe Components ✓ Non-Authorised Inventory information	45 pcs On Request	45 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

PM800HSA120 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	Mitsubishi Electronic
Input Voltage	10V
Mounting Type	Surface Mount
Storage Temperature	-40 to 125°C

View Similar Products (0)

PM800HSA120 Description

Short technical summary and product information.

The Mitsubishi Electric PM800HSA120 is an Intelligent Power Module (IPM) designed for high-power switching applications operating at frequencies up to 20kHz. This module integrates a complete single-phase IGBT inverter power circuit, including optimized gate drive and critical protection logic, into a single, isolated flat-base package.

Key electrical specifications include a Collector-Emitter Voltage (VCES) of 1200V, a continuous Collector Current (IC) of 800A, and a Peak Collector Current (ICP) of 1600A. The module offers integrated protection features such as Over Current (OC) trip level at 1300A and Short Circuit (SC) trip level at 1700A, enhancing system reliability.

Thermal management is critical, with a Power Device Junction Temperature (Tj) range of -20 to 150°C and a Case Operating Temperature (TC) range of -20 to 100°C. The module has an Isolation Voltage (Viso) of 2500Vrms. It is designed for applications like inverters, UPS systems, and motion/servo control.

The PM800HSA120 features a flat-base, insulated package suitable for surface mounting. Mounting torque specifications are provided for both M6 and M8 screws, ensuring secure installation. The module weight is approximately 1170 grams.

PM800HSA120 Quick Information

Product Type: Intelligent Power Module

Canonical Name: Mitsubishi Electric PM800HSA120 Intelligent Power Module

Subcategory: Intelligent Power Module

PM800HSA120 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

PM800HSA120 Estimated Pricing

Qty	Low	High
1+	$2.54	$2.54

Estimated market price range - modelled values for guidance only, not live distributor offers.

PM800HSA120 Features

1200V Collector-Emitter Voltage rating.
800A continuous Collector Current.
Integrated protection circuits included.
Suitable for frequencies up to 20kHz.
Flat-base insulated package design.

PM800HSA120 Applications

Used in high-power inverters.
Suitable for UPS systems.
Applied in motion/servo control.
Designed for power supplies.

PM800HSA120 FAQs

7 frequently asked questions generated from this part’s specifications.

What is the maximum Collector-Emitter Voltage (VCES) for the PM800HSA120?

The maximum Collector-Emitter Voltage (VCES) for the PM800HSA120 is 1200V.

What is the continuous Collector Current (IC) rating of the PM800HSA120?

The continuous Collector Current (IC) rating at 25°C is 800A.

What is the peak Collector Current (ICP) for this module?

The peak Collector Current (ICP) at 25°C is 1600A.

What is the operating temperature range for the PM800HSA120?

The case operating temperature range is -20 to 100°C.

What are the typical Over Current (OC) and Short Circuit (SC) trip levels?

The typical Over Current trip level is 1300A, and the typical Short Circuit trip level is 1700A.

What is the isolation voltage of the PM800HSA120?

The isolation voltage between the main terminal and baseplate is 2500Vrms.

What is the typical Over Temperature Trip Level?

The typical Over Temperature Trip Level is 110°C.
