| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

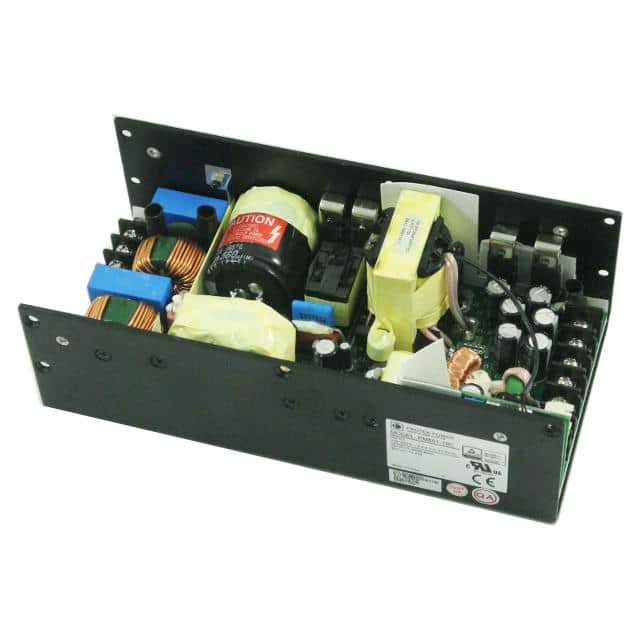

The FSP Technology Inc. PM651-14B is an open-frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a continuous output power of 650W with a single 24VDC output.
This converter operates with an input voltage range of 90 to 264 VAC and boasts an efficiency of 90%. Key features include adjustable output, remote sense, and a standby output, making it versatile for various system designs. The operating temperature range is -10°C to 70°C with derating.
With dimensions of 203.2mm x 101.6mm x 65.5mm, it is designed for chassis mounting. The unit is compliant with standards such as 60601-1 and 62368-1 and carries approvals from CE, cURus, TUV, and UL.
Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status.
The output voltage is 24VDC.
The maximum output current is 27.09A.
The power rating is 650W.
The input voltage range is 90 to 264 VAC.
The dimensions are 203.2mm x 101.6mm x 65.5mm.
The operating temperature range is -10°C to 70°C with derating.
It complies with standards 60601-1 and 62368-1.
