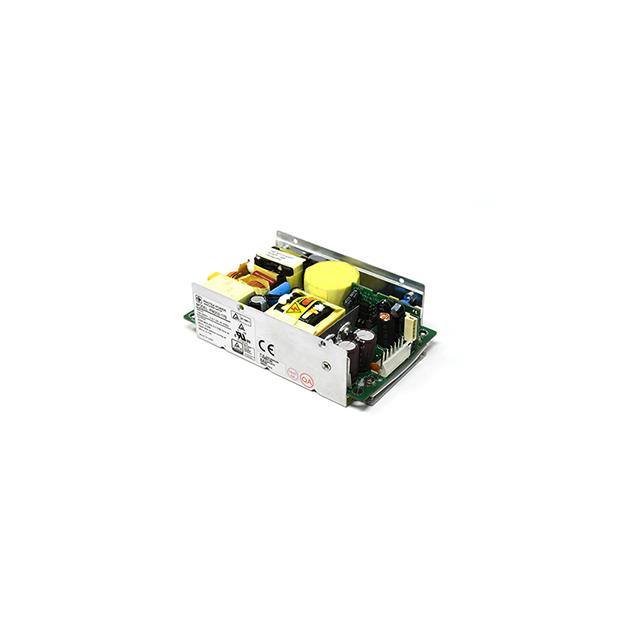

The TT Electronics/BI PM60-14A is an open frame AC/DC power supply designed for versatile applications. It provides a single 24V output with a maximum current of 2.7A, delivering a total of 64W of power. The unit accepts a wide input voltage range from 90 to 264 VAC, making it suitable for global use.
This power supply is designed for chassis mounting and features an efficiency of 88%. It operates within a temperature range of -10°C to 70°C. The compact dimensions of 4.00" x 2.00" x 1.18" allow for integration into space-constrained designs.
Compliance with standards such as 60601-1 and 62368-1, along with approvals from CE, cTUVus, cURus, and TUV, indicates its suitability for medical and ITE (Commercial) applications. The RoHS3 compliant status further aligns with environmental regulations.
The PM60-14A has a single output voltage of 24V.
The PM60-14A provides 64W of output power.
The PM60-14A accepts a wide input voltage range of 90 to 264 VAC.
The operating temperature range for the PM60-14A is -10°C to 70°C.
The PM60-14A complies with standards 60601-1 and 62368-1.
The PM60-14A is designed for chassis mount.
