| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
277 pcs
|
277 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Rated Current (Isat) | |
| Resistance to Soldering Heat | |
| Shielding | |
| Tape & Reel | |
| Temperature Rise | |
| Test Voltage | |
| Tolerance | |
| Type | |
| Width |

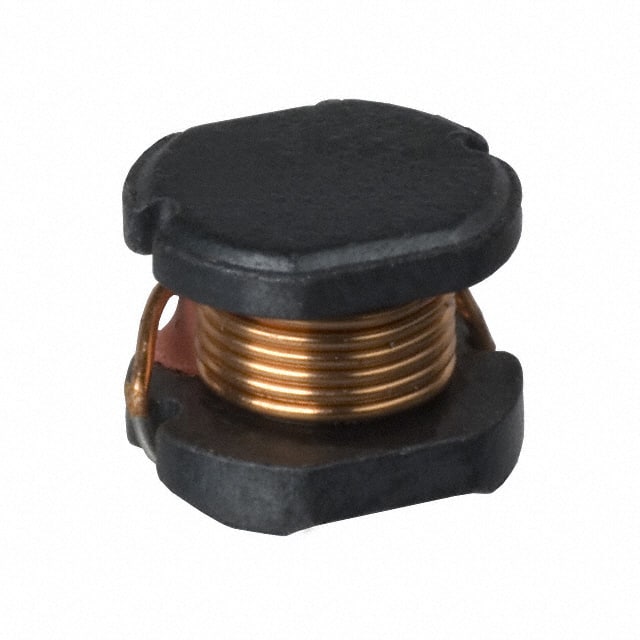

The Bourns PM54-101K-RC is a surface mountable, unshielded fixed inductor belonging to the PM54 series. This component features a compact drum core, wirewound construction with a ferrite core material, and a profile of 4.8mm. It provides an inductance value of 100µH with a tolerance of ±10% and a Q factor of 20 at 796kHz. The operating temperature range is -40°C to 125°C.
Designed for applications such as input/output of DC/DC converters and power supplies for portable communication equipment, camcorders, and LCD TVs, this inductor has a rated current of 520mA and a DC resistance of 700mOhm. The physical dimensions are 5.80mm in length and width, and 4.80mm in height. It is supplied in a standard reel package of 1500 pieces.
This inductor is RoHS 3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 100µH with a tolerance of ±10%.
The rated current is 520mA, with a saturation current (Isat) of 2.00A.
The maximum DC resistance is 700mOhm.
The operating temperature range is -40°C to 125°C.
The dimensions are 5.80mm L x 5.80mm W x 4.80mm H.
It is packaged on a reel with 1500 pieces per reel.
