| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| Current Rating (Typical @ Isat) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Tolerance | |
| Type | |
| Width | |
| frequency (Typical @ Self Resonant) |

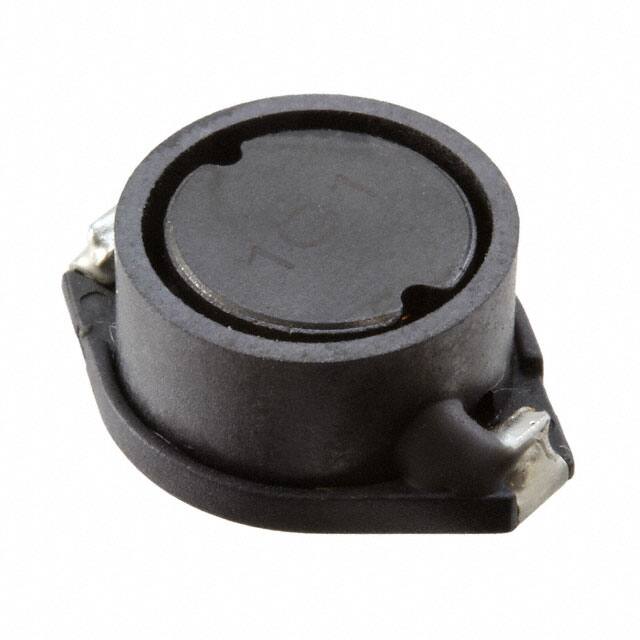

The Bourns PM5022S-470M-RC is a shielded power inductor from the PM5022S series. It offers an inductance value of 47µH with a tolerance of ±20% and a typical DC resistance of 110mΩ. This wirewound, drum core inductor is designed for surface mounting and has a compact size with a height of 7.10mm.
Key electrical specifications include a current rating of 4.2A and a saturation current (Isat) of 4A. The Q factor is typically 40 at 2.52MHz, and the self-resonant frequency is 8MHz. The operating temperature range is -40°C to 125°C, making it suitable for various demanding applications.
This inductor is RoHS3 compliant and has an MSL of 1. It is packaged in reels of 250 pieces, suitable for automated assembly processes. Its shielded construction helps minimize electromagnetic interference, making it ideal for DC/DC converter applications and power supplies in portable communication equipment, camcorders, and LCD TVs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 47µH.
The current rating is 4.2A.
The maximum DC Resistance is 110mΩ.
The operating temperature range is -40°C to 125°C.
It is a shielded drum core, wirewound inductor.
It is a surface mount inductor.
The standard package quantity is 250 pieces per reel.
