| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage |

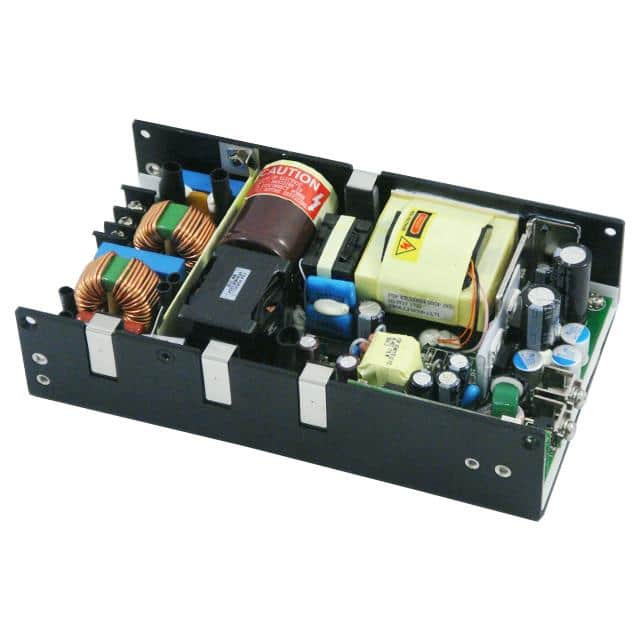

The FSP Technology Inc. PM500-12B is an open frame AC DC converter designed for ITE (Commercial) and Medical applications. It provides a single 12V output with a continuous power rating of 350W, capable of reaching 450W with forced air.
This converter operates with a universal input voltage range of 90 to 264 VAC and boasts an efficiency of 90%. Key features include adjustable output and universal input capabilities, making it versatile for various system designs. The operating temperature range is -10°C to 70°C with derating.
Mechanically, the PM500-12B measures 177.8mm x 101.6mm x 39.6mm and is designed for chassis mounting. It meets safety standards including 60601-1 and 62368-1, and is approved by CE, cURus, TUV, and UL.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. This component is suitable for applications requiring reliable power conversion in commercial and medical environments.
12V
37.5 A
350W (450W with forced air cooling)
90 to 264 VAC
90%
-10°C to 70°C with derating
Yes, the converter is approved for both ITE (commercial) and medical applications.
