| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
79 pcs
|
79 pcs | On Request | 1 | On Request | On Request | 0717 | On Request | On Request | |
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Storage Temperature | |
| Temperature Rise | |
| Tolerance | |
| Type | |
| Width |

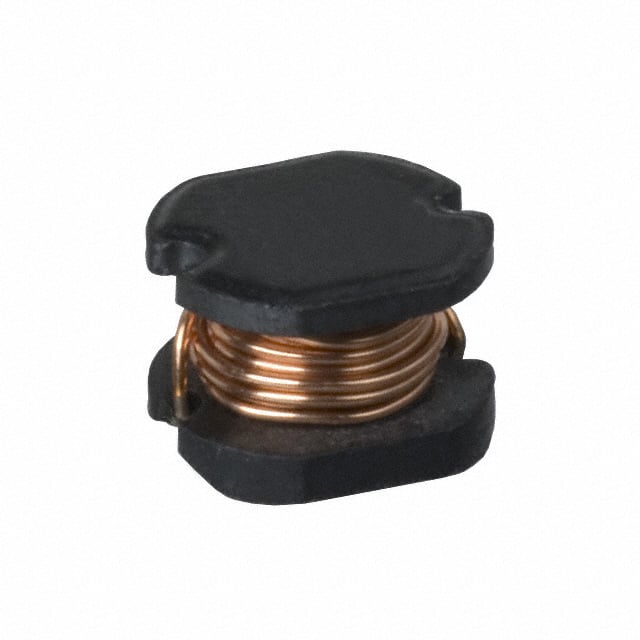

The Bourns PM43-100M-RC is a surface mount SMD power inductor from the PM43 series. It utilizes a ferrite drum core and wirewound construction, providing an inductance value of 10 µH with a tolerance of ±20%. This inductor is designed for applications requiring stable performance, with a rated current of 1.15A and a maximum DC resistance of 180mΩ.
With a low profile of 3.2 mm, it is suitable for space-constrained designs. The operating temperature range is -40°C to +125°C. The component measures 4.50mm in length, 4.00mm in width, and 3.50mm in height. It is packaged in reels of 1500 pieces.
Key electrical characteristics include a Q factor of 28 at 2.52MHz and a self-resonant frequency of 33MHz. The inductor is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 10 µH.
The tolerance is ±20%.
The rated current is 1.15A.
The maximum DC resistance is 180mΩ.
The operating temperature range is -40°C to +125°C.
It is a surface mount package.
There are 1500 pieces per reel.
