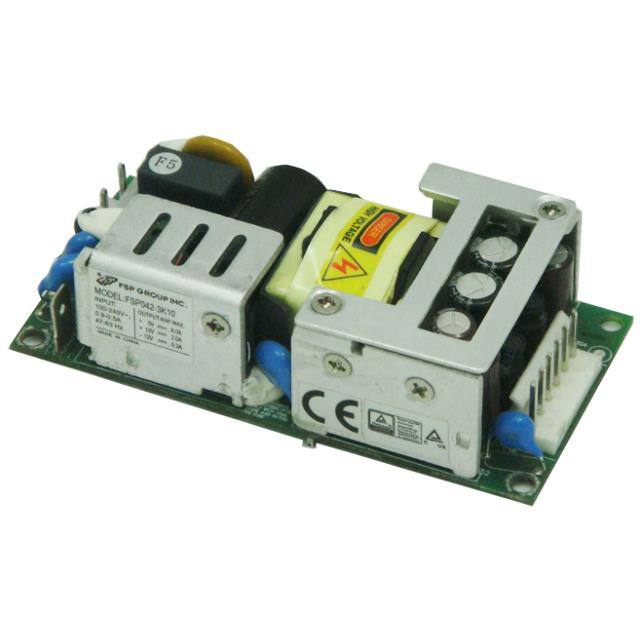

The PM42-31A from FSP Technology Inc. is an open frame AC/DC power supply designed for ITE (Commercial) and Medical applications. It provides a total output power of 58W, with outputs of 5V, +12V, and -12V. The unit operates with a wide-range universal input of 90-264 VAC, making it suitable for global use.
This power supply features adjustable output and a high efficiency of 88%. Its compact dimensions of 4.00" x 2.00" x 1.18" (101.6mm x 50.8mm x 30.0mm) allow for easy integration into various systems. The PM42-31A is designed for chassis mounting and meets standard numbers 60601-1 and 62368-1, with approvals from CE, cURus, TUV, and UL.
Environmental compliance includes RoHS3 compliance and an MSL of 1. The operating temperature range is -10°C to 70°C with derating. This model is part of the PM42 series.
The PM42-31A has a total output power of 58W.
The PM42-31A provides output voltages of 5V, +12V, and -12V.
The PM42-31A features a wide-range universal input of 90-264 VAC.
The dimensions are 4.00" L x 2.00" W x 1.18" H (101.6mm x 50.8mm x 30.0mm).
It is suitable for ITE (Commercial) and Medical applications.
The operating temperature range is -10°C to 70°C with derating.
Yes, the PM42-31A is RoHS3 Compliant.
