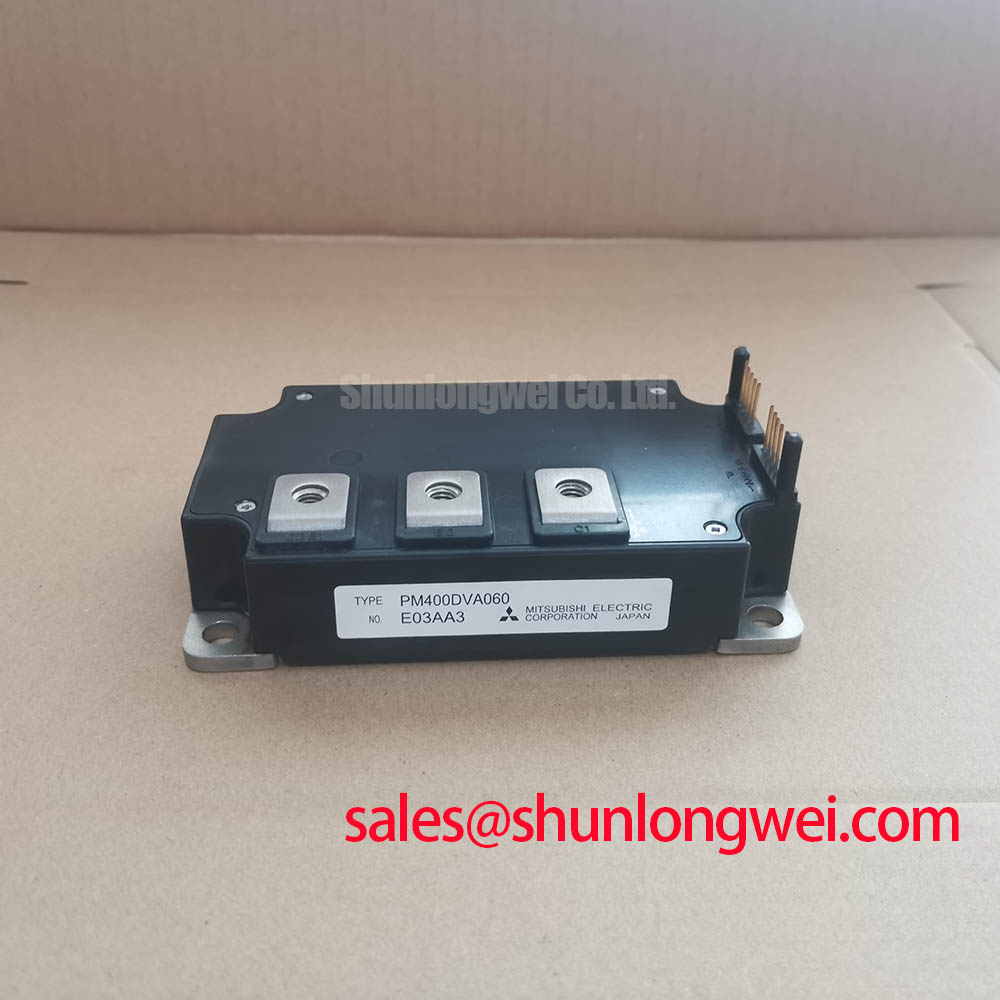

PM400DVA060 The Powerex Inc. PM400DVA060 is a 600V, 400A Intelligent Power Module (IPM) with an IGBT configuration. It is designed for chassis mounting.
Mfr Part #:

PM400DVA060

Available from 1 distributors
Mfr Name: Powerex Inc.
Powerex Inc.
The Powerex Inc. PM400DVA060 is a 600V, 400A Intelligent Power Module (IPM) with an IGBT configuration. It is designed for chassis mounting.
✓ Total Stock: 3,200 pcs
$ Price Range: $2.94

PM400DVA060 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Components Technology Group, Inc. ✓
Non-Authorised Inventory information
3,200 pcs
On Request
3200 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PM400DVA060 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Configuration
Current
Input Voltage
Junction Temperature
Mounting Type
Storage Temperature
Supply Voltage
Tape & Reel
Type
Voltage
View Similar Products (0)

PM400DVA060 Description

Short technical summary and product information.

The Powerex Inc. PM400DVA060 is an Intelligent Power Module (IPM) designed for high-power switching applications. This module features an IGBT configuration with a 600V collector-emitter voltage rating and a 400A collector current rating.



Designed for chassis mounting, the PM400DVA060 integrates essential power switching components into a single, robust package. Its applications include inverters, UPS systems, motion/servo control, and power supplies. The module operates at frequencies up to 20kHz and includes built-in gate drive and protection logic for short circuit, over temperature, and under voltage conditions.



Key electrical characteristics include a 600V collector-emitter voltage and 400A collector current. The module is rated for a maximum junction temperature of 150°C and an operating case temperature up to 100°C. It also features a high isolation voltage of 2500Vrms.



This Intellimod™ module is suitable for demanding power conversion systems requiring reliability and integrated protection features. Its design simplifies system integration and enhances operational robustness.

PM400DVA060 Quick Information

Product Type: Intelligent Power Module
Series: D-Series
Canonical Name: Powerex Inc. PM400DVA060 Intelligent Power Module
Subcategory: Intelligent Power Module (IPM)

PM400DVA060 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PM400DVA060 Estimated Pricing

Qty Low High
1+ $2.94 $2.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

PM400DVA060 Features

  • 600V collector-emitter voltage rating.
  • 400A continuous collector current.
  • IGBT power switching technology.
  • Chassis mountable power module.
  • Integrated protection logic included.

PM400DVA060 Applications

  • Suitable for inverter applications.
  • Used in UPS systems.
  • Ideal for motion/servo control.
  • Applicable for power supplies.

PM400DVA060 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the voltage rating of the PM400DVA060?

The PM400DVA060 has a collector-emitter voltage rating of 600V.

What is the current rating for the PM400DVA060?

The PM400DVA060 has a continuous collector current rating of 400A.

What type of module is the PM400DVA060?

The PM400DVA060 is an Intelligent Power Module (IPM) utilizing IGBT technology.

How is the PM400DVA060 mounted?

The PM400DVA060 is designed for chassis mounting.

What is the maximum operating junction temperature for this module?

The maximum operating junction temperature for the PM400DVA060 is 150°C.

What protection features are built into the PM400DVA060?

The PM400DVA060 includes protection logic for short circuit, over temperature, and under voltage.
