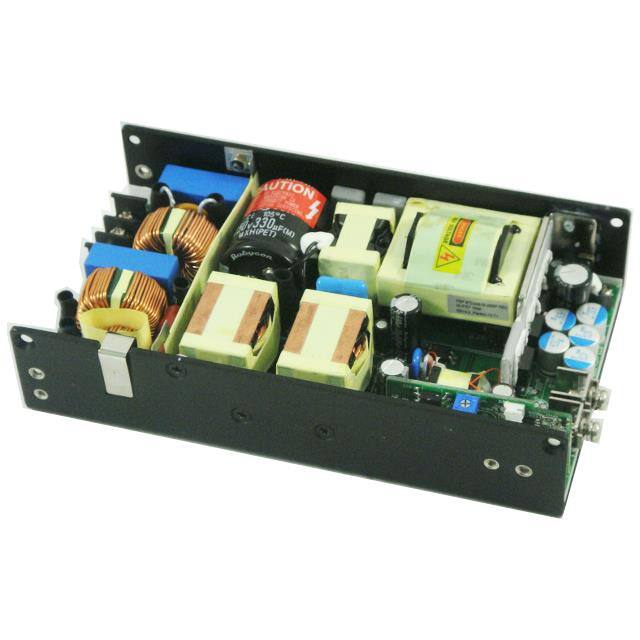

This FSP Technology Inc. PM400-14B is an AC/DC converter designed for ITE (Commercial) and Medical applications. It operates with an input voltage range of 90-264 VAC and provides a stable 24VDC output at 16.67A, with a power rating of 300W, or 400W with forced air.
The converter features an open frame construction suitable for chassis mounting. Its dimensions are 177.8mm in length, 101.6mm in width, and 39.6mm in height. The operating temperature range is -10°C to 70°C with derating. Key features include adjustable output and universal input capabilities, with an efficiency of 91%.
Compliance is indicated by CE, cURus, TUV, and UL approvals. The unit is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. It is designed for applications requiring a reliable power supply with specific voltage and current requirements.
The output voltage is 24 VDC.
The output current is 16.67 A.
The power rating is 300W, or 400W with forced air.
The input voltage range is 90-264 VAC.
The dimensions are 177.8mm in length, 101.6mm in width, and 39.6mm in height.
The operating temperature range is -10°C to 70°C with derating.
It is an open frame type suitable for chassis mounting.
