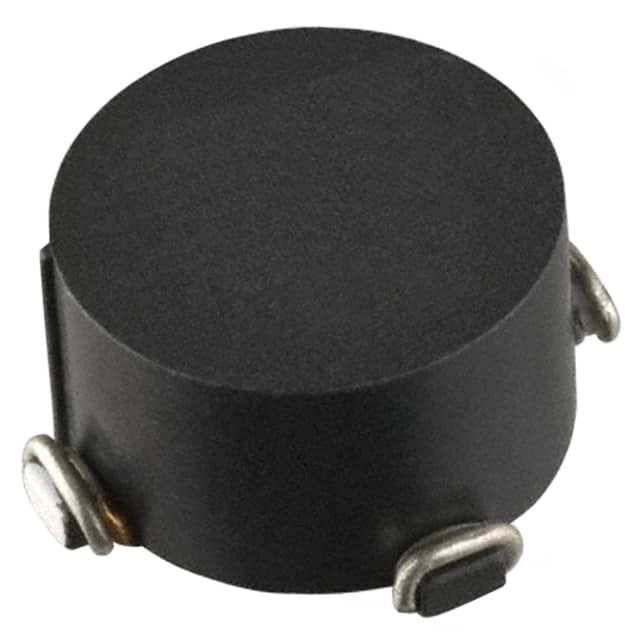

PM3700-20-RC The Bourns PM3700-20-RC is an SMD common mode choke with a 500 µH inductance and a 6A current rating. It is designed for surface mounting and operates over a wide temperature range.
Mfr Part #:

PM3700-20-RC

Available from 3 distributors
Mfr Name: Bourns
Bourns
The Bourns PM3700-20-RC is an SMD common mode choke with a 500 µH inductance and a 6A current rating. It is designed for surface mounting and operates over a wide temperature range.
✓ Total Stock: 114 pcs
$ Price Range: $0.99

PM3700-20-RC Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Speed Components Ltd ✓
Non-Authorised Inventory information
75 pcs
On Request
75 pcs On Request 1 On Request On Request 22+ On Request On Request
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
38 pcs
On Request
38 pcs On Request 1 On Request On Request On Request On Request On Request
Trace Tec ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

PM3700-20-RC Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Core Material
Current Rating (Max)
DC Resistance (DCR) (Max)
Height
Height (Max)
Inductance @ Frequency
Length
Mounting Type
Number of Lines
Operating Temperature
Tape & Reel
Temperature Rise
Width
View Similar Products (0)

PM3700-20-RC Description

Short technical summary and product information.

The Bourns PM3700-20-RC is a surface-mount common mode choke from the PM3700 Series. It offers a nominal inductance of 500 µH at 1 kHz and can handle a maximum current rating of 6A, with a maximum DC resistance of 10mOhm.



This component features a compact size and is suitable for filtering applications. It operates within a temperature range of -55°C to +125°C. The choke is constructed with a ferrite core, polyester-coated copper wire, and a Sn-Ag-Cu alloy terminal coating.



Designed for surface mounting, the PM3700-20-RC comes in a horizontal, 4-pad package. It is supplied in tape and reel packaging, with 200 pieces per 13-inch reel.

PM3700-20-RC Quick Information

Product Type: Common Mode Choke
Series: PM3700
Canonical Name: Bourns PM3700 Series SMD Common Mode Choke
Subcategory: SMD

PM3700-20-RC Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

PM3700-20-RC Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

PM3700-20-RC Features

  • 500 µH inductance at 1 kHz.
  • Rated for a maximum current of 6A.
  • Low DC resistance of 10mOhm.
  • Wide operating temperature range of -55°C to 125°C.
  • Compact SMD package for surface mounting.

PM3700-20-RC Applications

  • Used in EMI noise filtering circuits
  • Suitable for power supply filtering
  • Ideal for signal line noise suppression
  • Applied in electronic device manufacturing

PM3700-20-RC FAQs

6 frequently asked questions generated from this part’s specifications.
What is the inductance of the Bourns PM3700-20-RC?

The inductance is 500 µH at 1 kHz.

What is the maximum current rating for this common mode choke?

The maximum current rating is 6A.

What is the DC resistance (DCR) of the PM3700-20-RC?

The maximum DC resistance is 10mOhm.

What is the operating temperature range?

The operating temperature range is -55°C to 125°C.

How is the Bourns PM3700-20-RC mounted?

It is a surface mount component.

What is the standard package quantity?

The standard package quantity is 200 pieces per 13-inch reel.
