| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
40 pcs
|
40 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Core Material | |
| Current Rating | |
| DC Resistance (DCR) | |
| Dielectric Strength | |
| Height | |
| Inductance | |
| Inductance (Nominal) | |
| Length | |
| Mounting Type | |
| Number of Coils | |
| Operating Temperature | |
| Shielding | |
| Soldering | |
| Standard Package Quantity | |
| Storage Temperature | |
| Tape & Reel | |
| Tape and Reel | |
| Temperature Rise | |
| Terminal Coating | |
| Tolerance | |
| Width | |
| Wire Material |

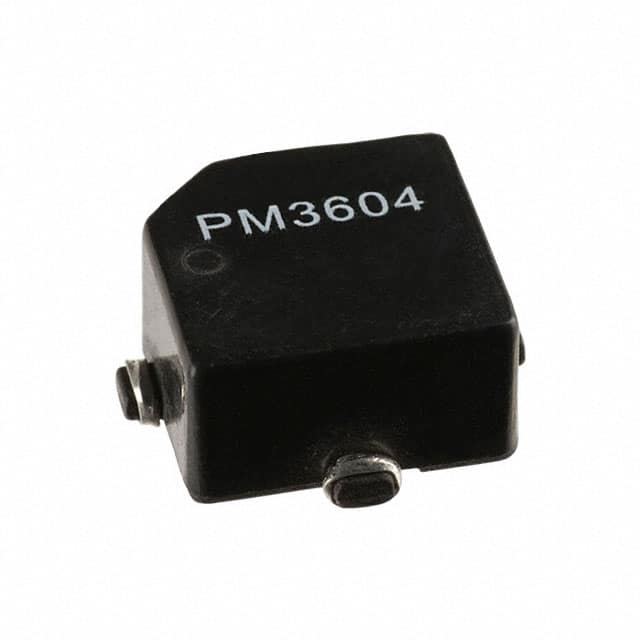

This Bourns PM3604-25-RC is a dual coil inductor array designed for surface mounting. It offers a nominal inductance of 25µH with a tolerance of ±20%. The component is rated for a current of 960mA and has a maximum DC resistance of 54mOhm.
With an operating temperature range of -55°C to 125°C, this inductor array is suitable for various applications. It features a dielectric strength of 500 Vrms between windings and is supplied in tape and reel packaging.
The physical dimensions of the PM3604-25-RC are 13.97mm in length, 11.48mm in width, and 6.73mm in height. The core material is iron, and the wire is polyurethane-coated copper, with a Sn-Ag-Cu alloy terminal coating.
This part is part of the PM3600 series and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 25 microhenries.
The maximum DC resistance is 54 milliohms.
It operates from -55°C to +125°C.
The dielectric strength is 500 Vrms.
It comes in a tape and reel package with 400 pieces per reel.
