| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
800 pcs
|
800 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| DC Resistance (DCR) | |
| Height | |
| Inductance | |
| Length | |
| Mounting Type | |
| Number of Coils | |
| Operating Temperature | |
| Shielding | |
| Tape & Reel | |
| Tolerance | |
| Width |

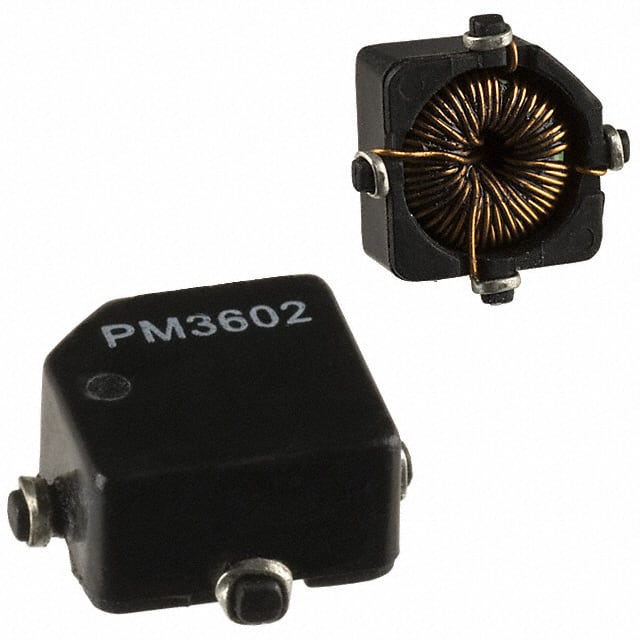

The Bourns PM3602-15-RC is a 2-coil inductor array designed for surface mount applications. It offers a parallel inductance of 15 µH with a tolerance of ±20% and a series inductance of 60 µH. The component has a maximum DC resistance of 63mΩ in parallel and 250mΩ in series, with a current rating of 1.45A in parallel and 0.73A in series.
This unshielded inductor array operates within a temperature range of -55°C to 125°C and has a dielectric strength of 500 Vrms between windings. Its dimensions are 11.48mm L x 8.99mm W x 5.72mm H. The product is supplied in tape and reel packaging.
Applications for this inductor array include parallel, series, and dual differential mode configurations, as well as 1:1 ratio transformers. It is suitable for various electronic circuits requiring compact and reliable inductive components.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance is 15 µH when connected in parallel.
The current rating is 1.45 A in parallel configuration.
The operating temperature range is -55°C to 125°C.
The package type is Nonstandard.
It is mounted using the Surface Mount method.
Yes, it is RoHS3 Compliant.
