| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
396 pcs
|
396 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Resistance to Soldering Heat | |
| Self-Resonant Frequency (SRF) | |
| Shielding | |
| Temperature Rise | |
| Tolerance | |
| Type | |
| Width |

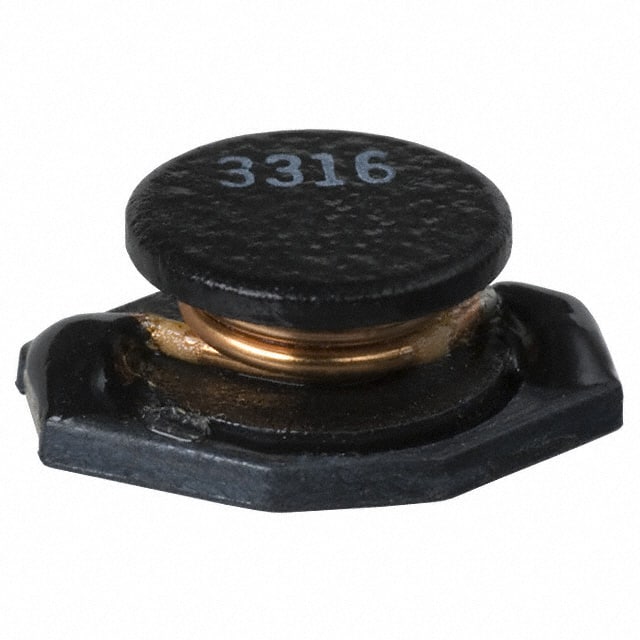

The Bourns PM3316-220M-RC is a fixed inductor from the PM3316 series, designed for various power supply applications. It offers an inductance of 22µH with a tolerance of ±20% and a rated current of 2A at Irms, with a saturation current of 2.5A.
This inductor has a low DC resistance (DCR) of 100mOhm maximum and a Q factor of 40 at 3MHz. It operates within a temperature range of -55°C to 125°C. The component features a drum core, wirewound construction and is unshielded.
Designed for surface mounting, the PM3316-220M-RC has dimensions of 12.70mm L x 10.00mm W x 5.30mm H. It is packaged in reels of 500 pieces. The material used for the core is ferrite, and it meets RoHS3 compliance standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.52 | $0.52 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The inductance value is 22 µH.
The current rating is 2 A at Irms and 2.5 A at Isat.
The DC Resistance (DCR) is 100mOhm maximum.
The operating temperature range is -55°C to 125°C.
This inductor is designed for surface mounting.
The standard package quantity is 500 pieces per reel.
