Mfr Part #:

PM324MBAOSP

Name: PM324MBAOSP
Brand: Anderson Power Products, Inc.
SKU: PM324MBAOSP

Description:

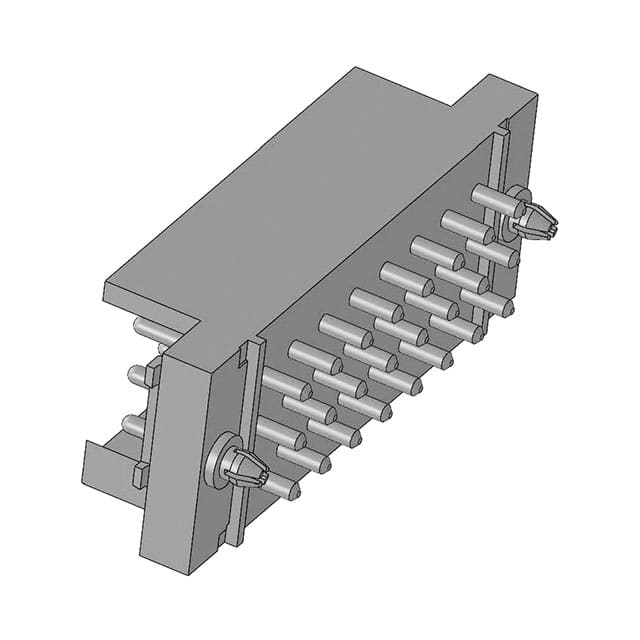

POWERMOD 3X24 PIN STRAIGHT PCB

Stock on Request

PM324MBAOSP Description

Short technical summary and product information.

POWERMOD 3X24 PIN STRAIGHT PCB

Mfr Standard Lead Time: 12 weeks (varies by distributor)

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

Category	Headers, Male Pins
Manufacturer Name	Anderson Power Products, Inc.
Connector Type	Header
Contact Finish	Tin Alloy
Contact Finish Thickness	10.0碌in (0.25碌m)
Contact Length	0.150" (3.81mm)
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin, Power
Current Rating (Amps)	30A
Features	Board Lock
Insulation Color	Black
Insulation Height	0.600" (15.24mm)
Insulation Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature	-55°C ~ 180°C
Pitch	0.197" (5.00mm)
Row Spacing	0.197" (5.00mm)
Shrouding	Shrouded - 2 Wall
Style	Board to Board or Cable
Termination	Solder
Voltage Rating	600V
