| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

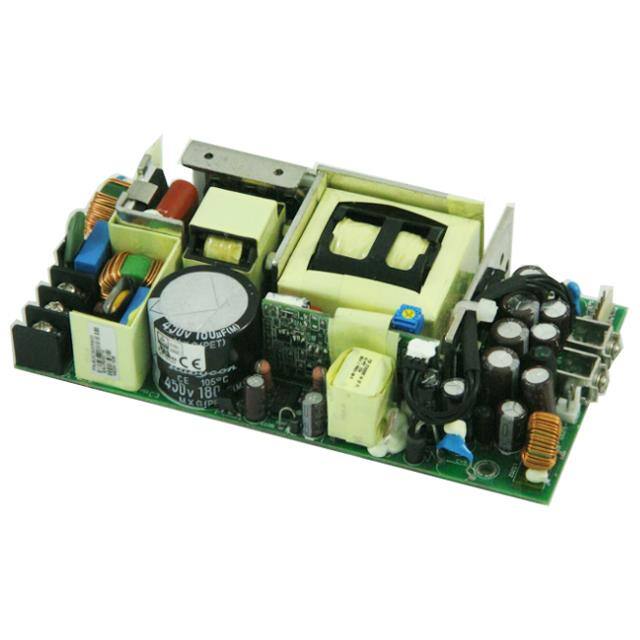

The FSP Technology Inc. PM301-14A is an open-frame AC/DC converter designed for ITE (Commercial) and Medical applications. It provides a stable 24V output with a nominal power rating of 200W, capable of reaching 300W with forced air.
This converter operates with a wide input voltage range of 90 to 264 VAC and boasts an efficiency of 92%. Key features include adjustable output and universal input, making it versatile for various system designs. The operating temperature range is 0°C to 70°C with derating.
With dimensions of 84.1mm x 173.2mm x 40.1mm, it is designed for chassis mounting. The unit has a single output and complies with standards such as 60601-1 and 62368-1, carrying CE, cURus, TUV, and UL approval agency certifications.
The input voltage range is 90 to 264 VAC.
The nominal output voltage is 24V.
The output current is 12.5A.
The nominal power is 200W, with 300W peak power under forced air cooling.
The typical efficiency is 92%.
The operating temperature range is 0°C to 70°C with derating.
The dimensions are 84.1mm (length) x 173.2mm (width) x 40.1mm (height).
